Black PA12 Micro-Automation Oscillating Clamping Link via Selective Laser Sintering

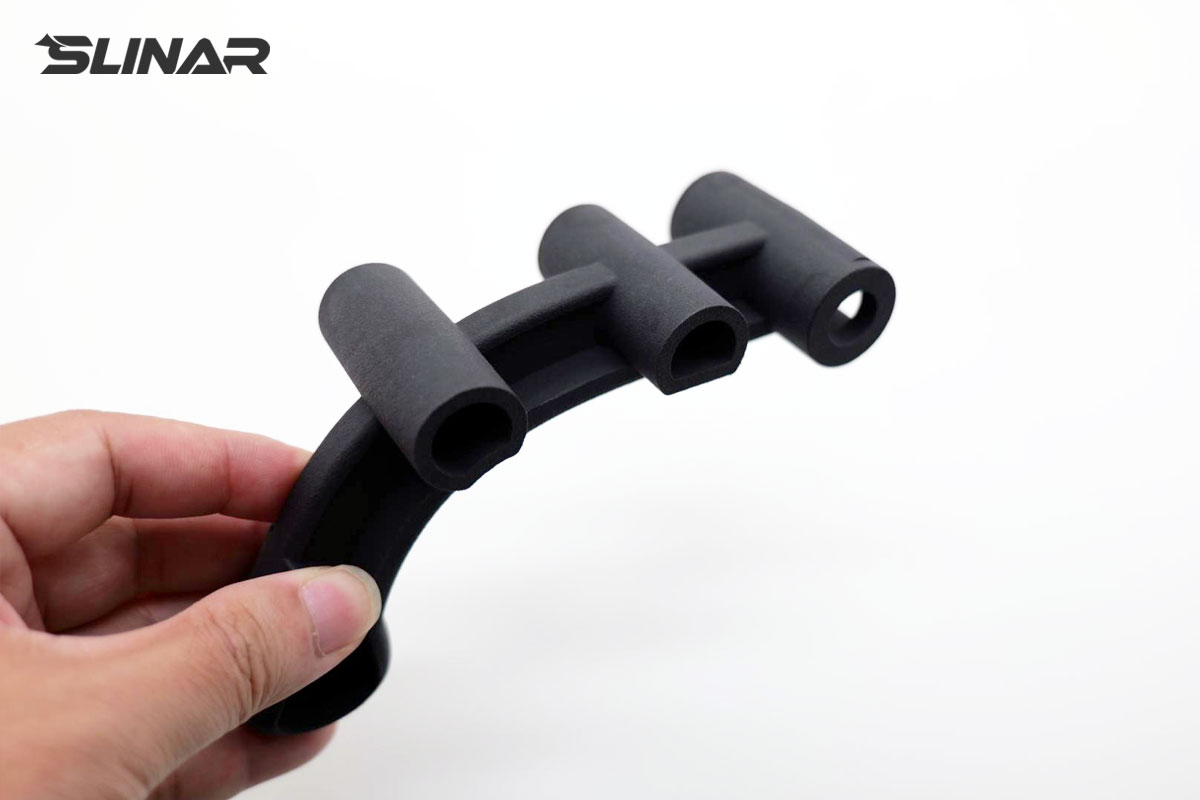

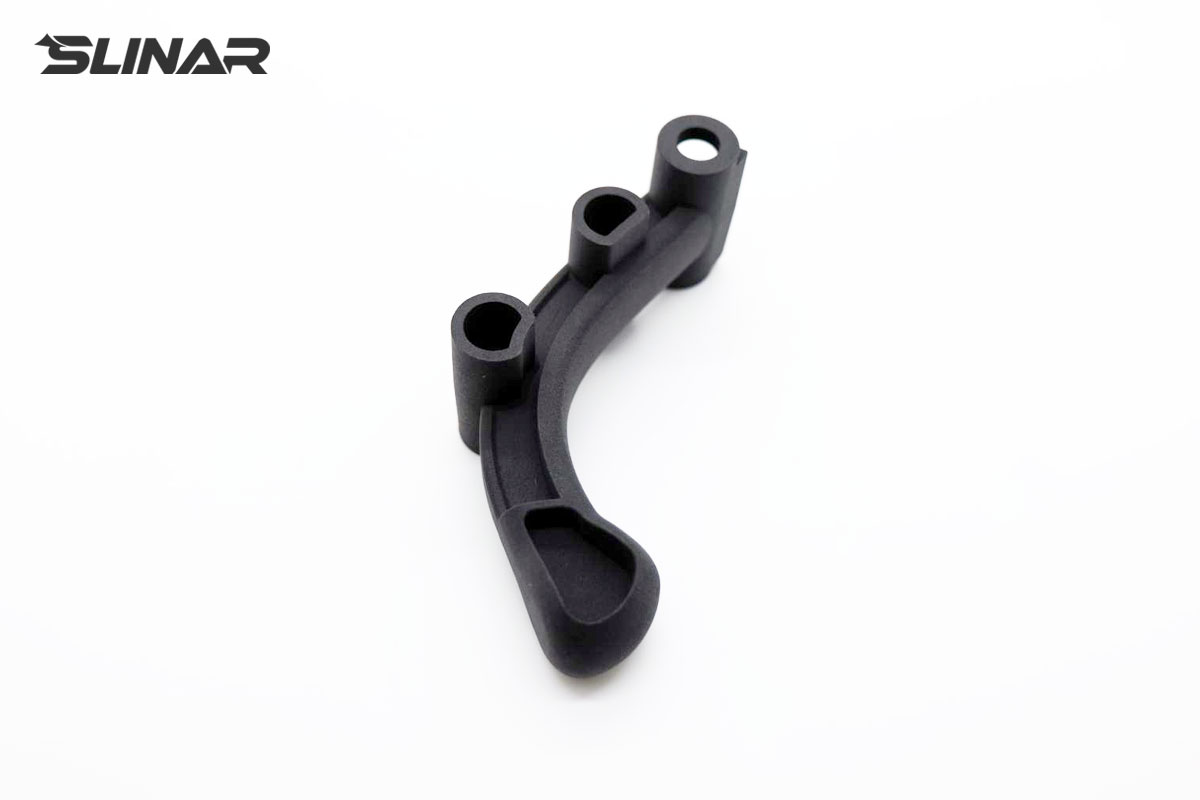

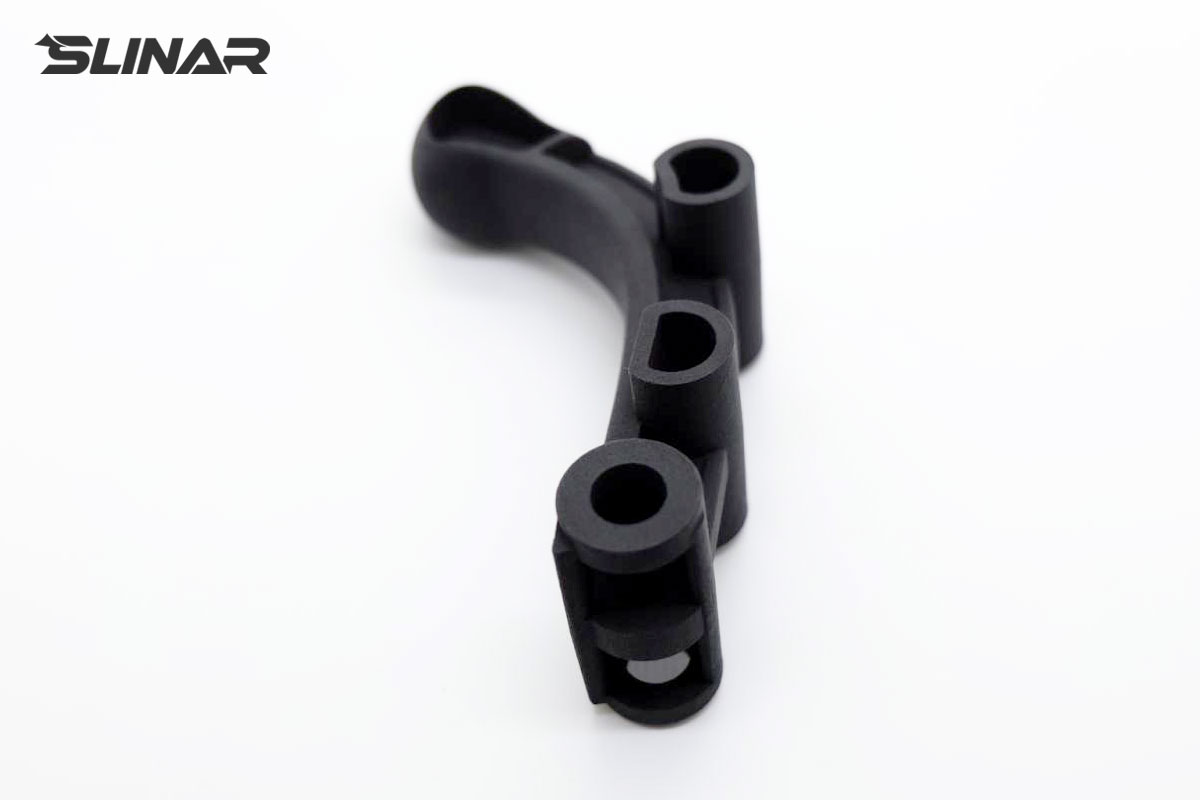

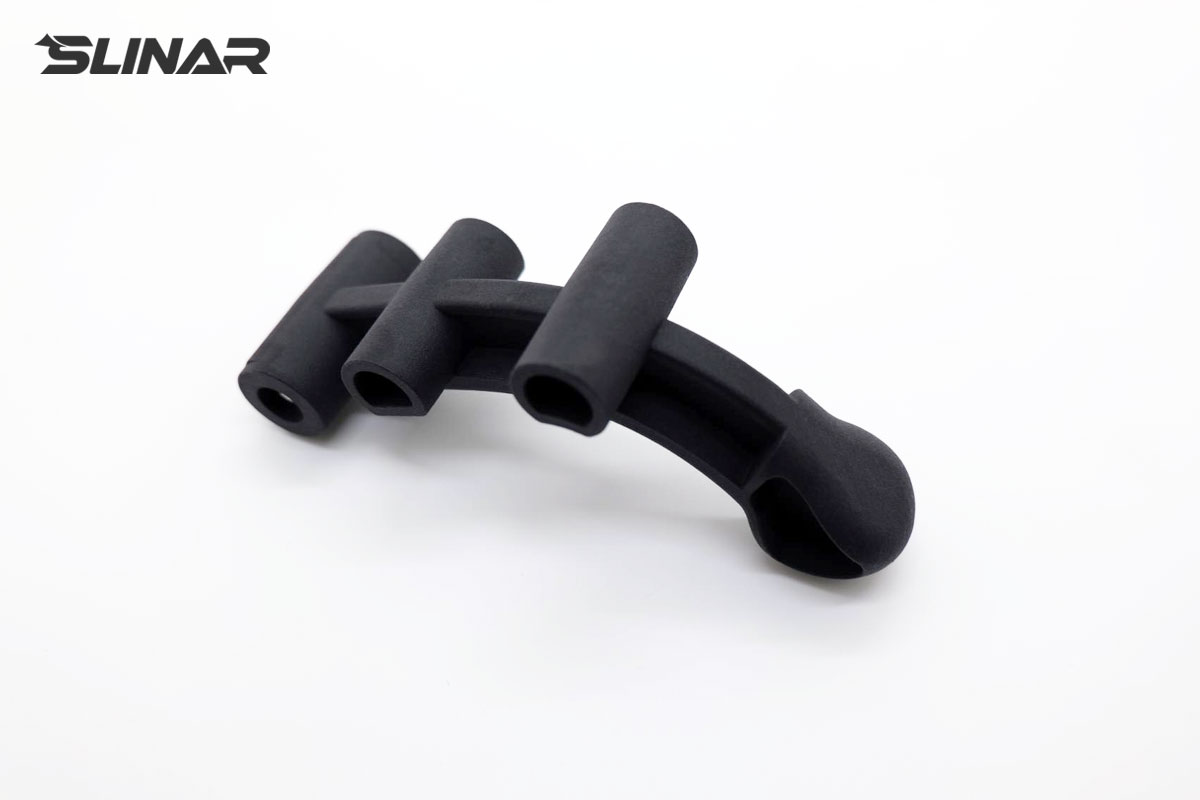

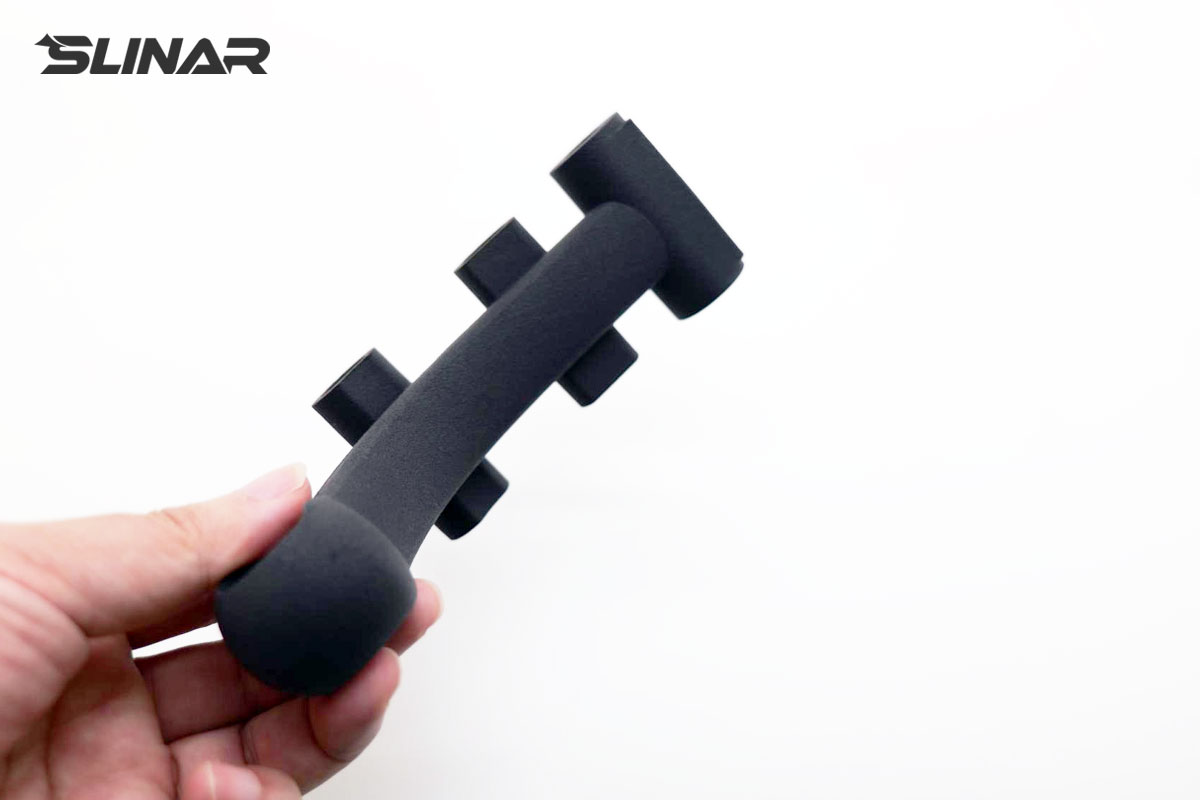

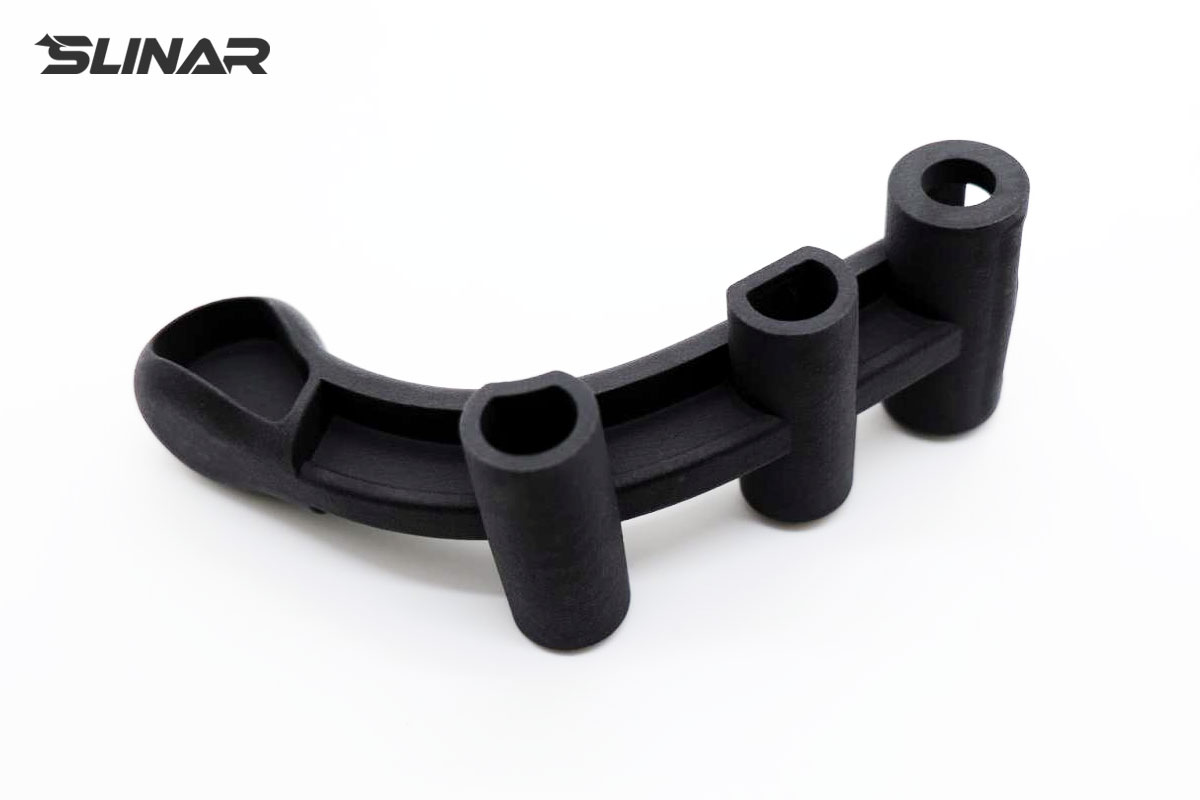

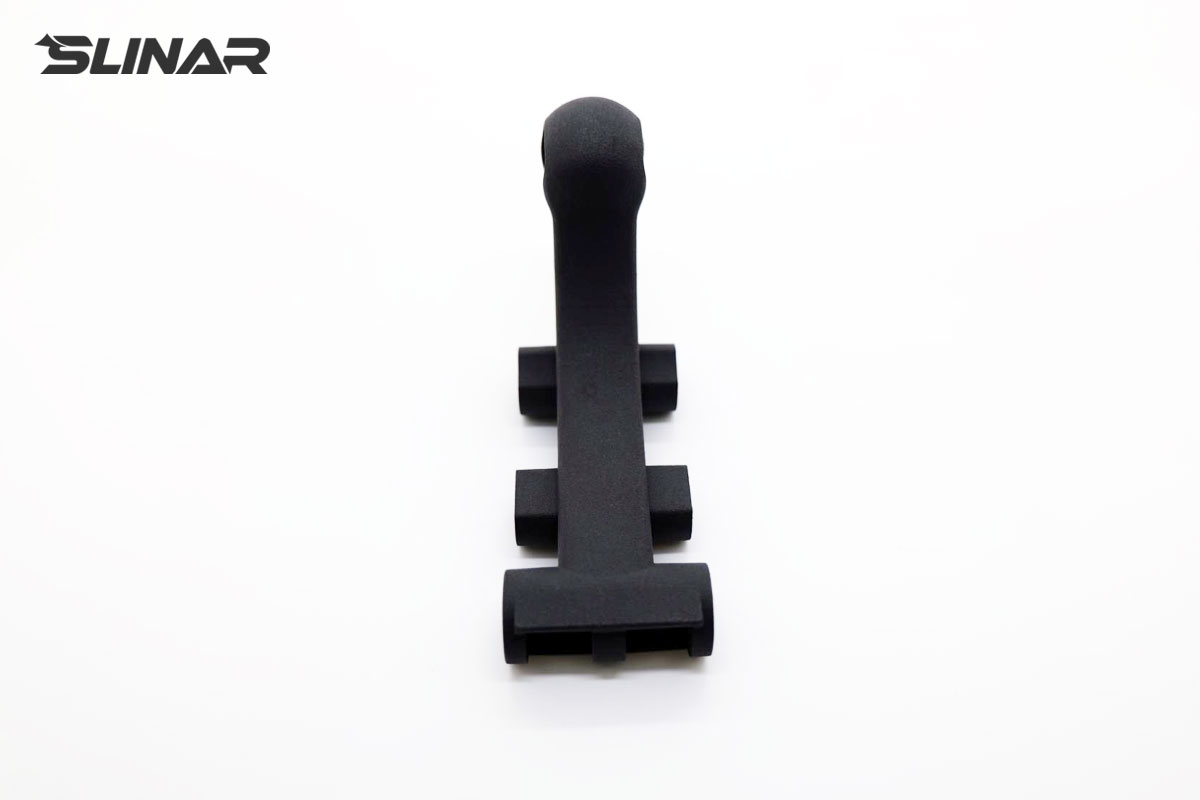

We produced a black PA12 oscillating clamping link for a micro-automation gripper application using Selective Laser Sintering (SLS). This lightweight linkage component combines a clamping jaw with an integrated pivot joint, requiring fatigue resistance for repeated oscillation cycles and dimensional stability for precise positioning.

PA12 (Nylon 12) was selected for its combination of mechanical strength and functional performance in moving assemblies. Key properties include tensile strength of 46-50 MPa for clamping force transmission, elongation at break of 7-13% for snap-fit and hinge flexibility, heat deflection temperature of 95-115°C for stiffness under elevated temperatures, and low moisture absorption ensuring dimensional stability across environments.

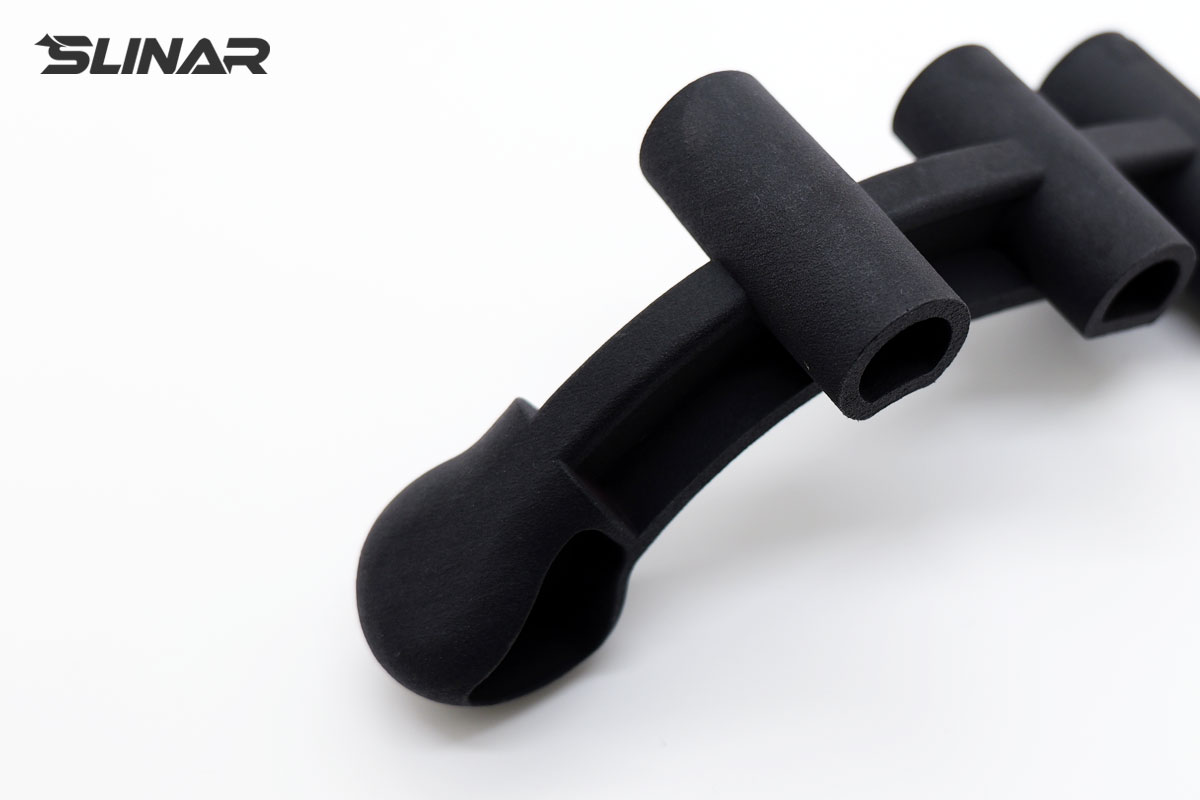

Design integration included an integral hinge/pivot feature eliminating separate pin assembly, snap-fit clamping geometry with 0.5mm+ base radii to prevent stress cracking, and thin-wall lightening sections to reduce mass while maintaining structural integrity.

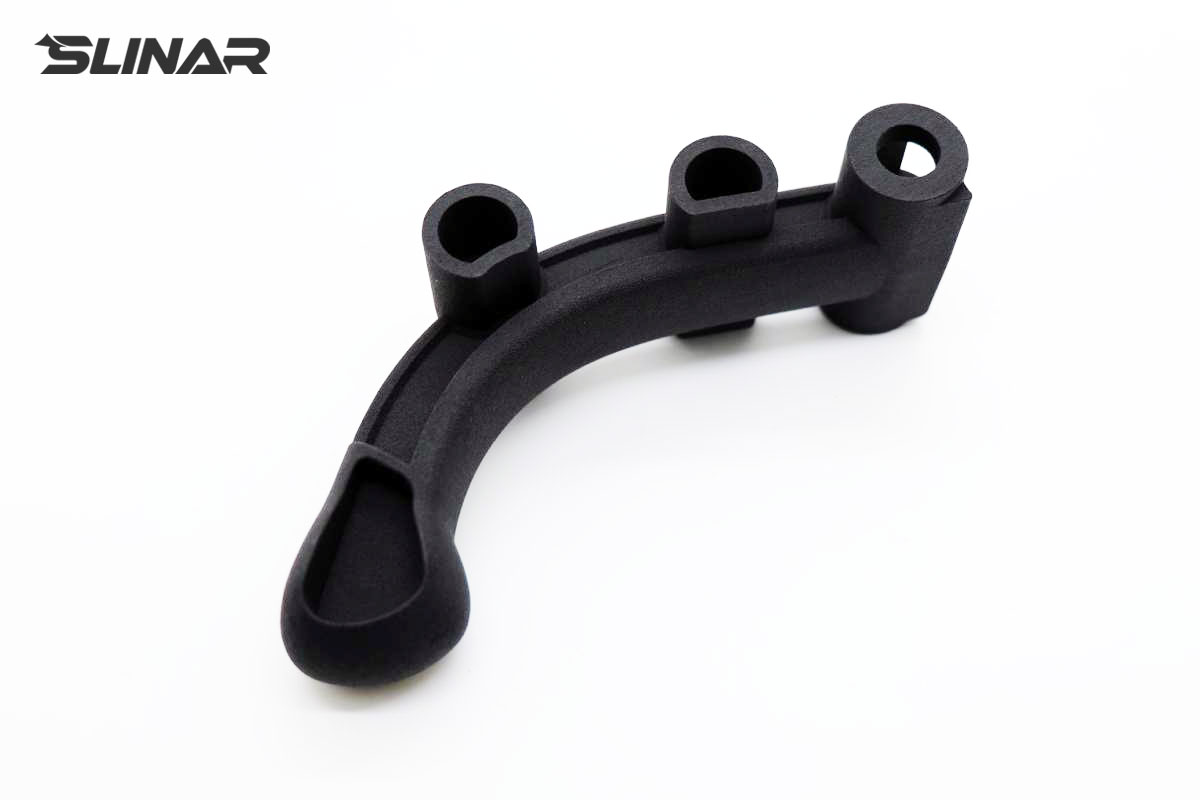

Post-processing included depowdering followed by black dyeing for uniform appearance and UV protection. The black finish provides better visual concealment and reduces layer line visibility compared to natural nylon parts.

Project Overview

Key Technical Highlights

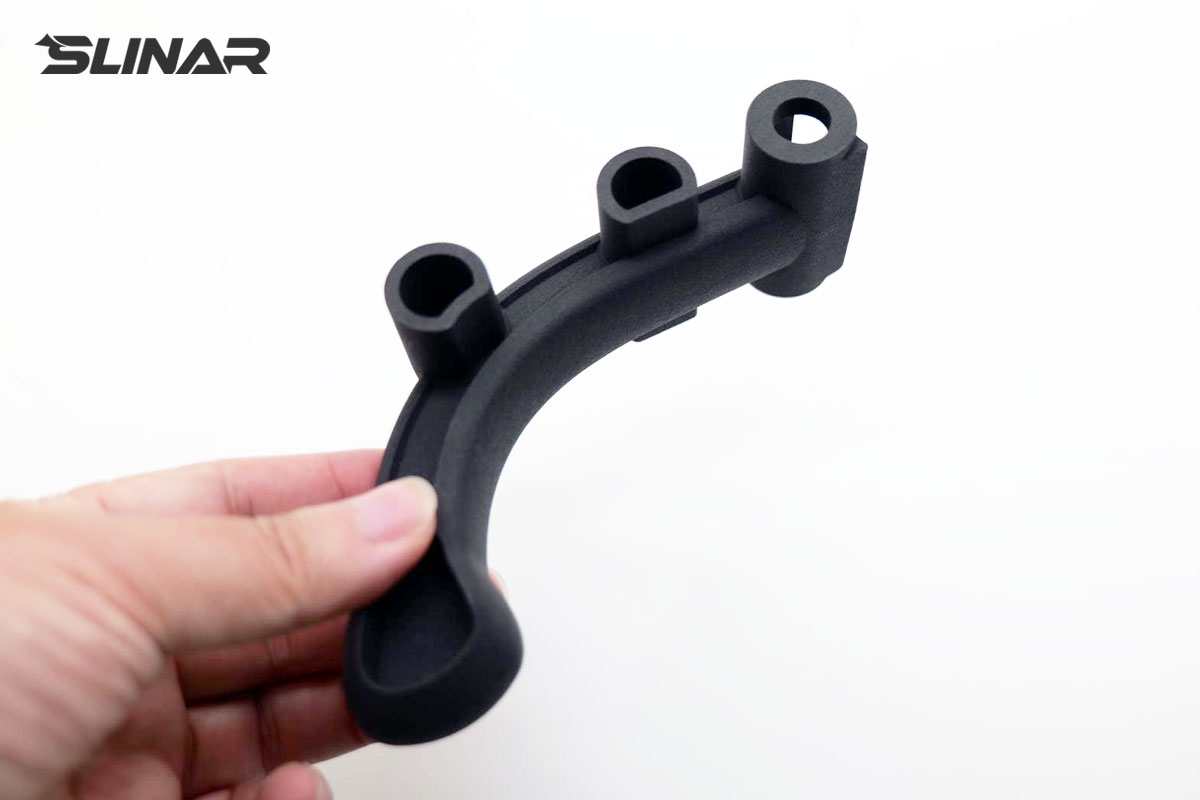

• Integrated Moving Features: SLS enables printing of assembled components with moving joints in a single build, eliminating separate bearing or pin parts. PA12's 7-13% elongation provides the necessary flexibility for hinge and snap-fit features.
• Fatigue Resistance: PA12's mechanical properties support repeated clamping cycles and oscillating motion. SLS-printed PA12 components are regularly used for functional applications requiring durability.
• Black Dye Finish: Post-processing dyeing provides uniform black color for professional appearance, UV protection, and consistent cosmetic quality across production runs.
• Micro-Automation Suitable: SLS's dimensional accuracy supports the tight tolerances required for miniature automation components.

Quality Verification

Dimensional accuracy verified via CMM measurement. Hinge/joint function tested for oscillation cycles. Snap-fit engagement and release force verified. Surface finish inspected for uniform black color and powder residue removal.

Industry Applications

Ideal for micro-automation gripper linkages, oscillating clamp arms, lightweight robotic end-effectors, and functional moving assemblies requiring integrated joints and snap-fit features.
