High-Transparency PC 3D Printed E-Bike Outer Snap Ring with Integrated Clear Headlight Lens Cover Assembly

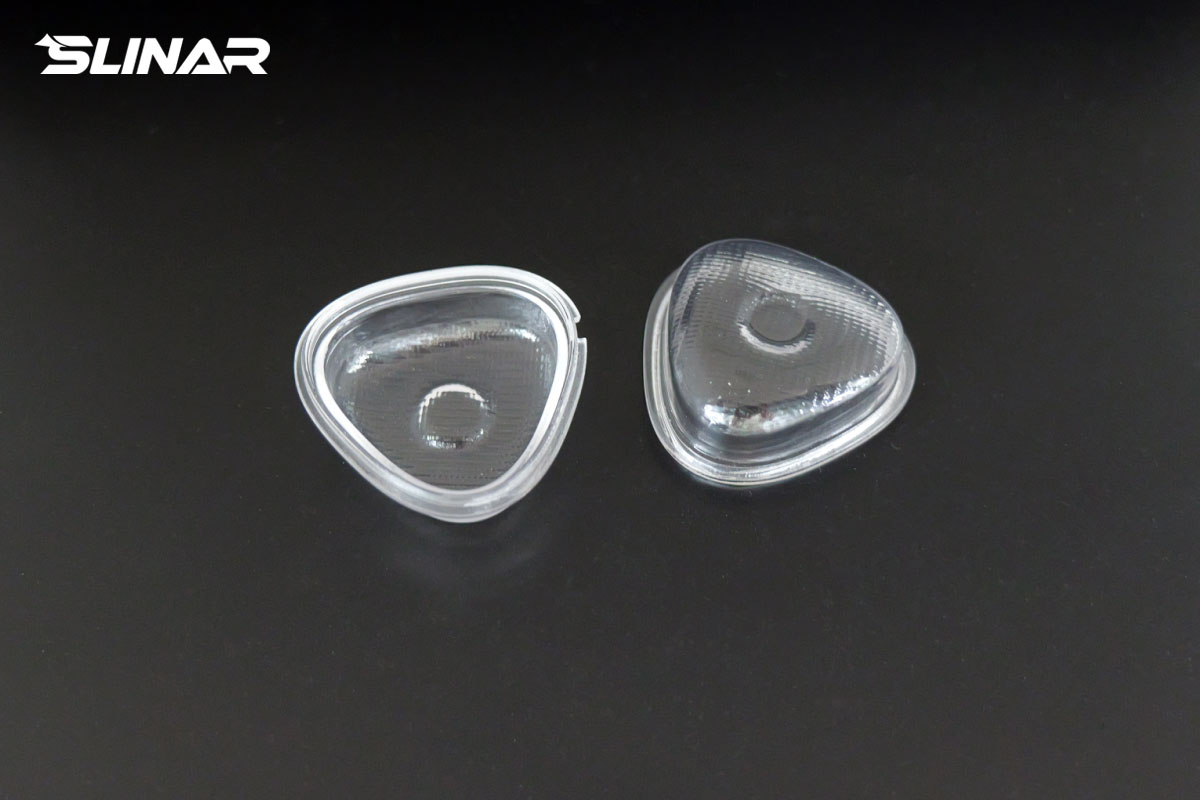

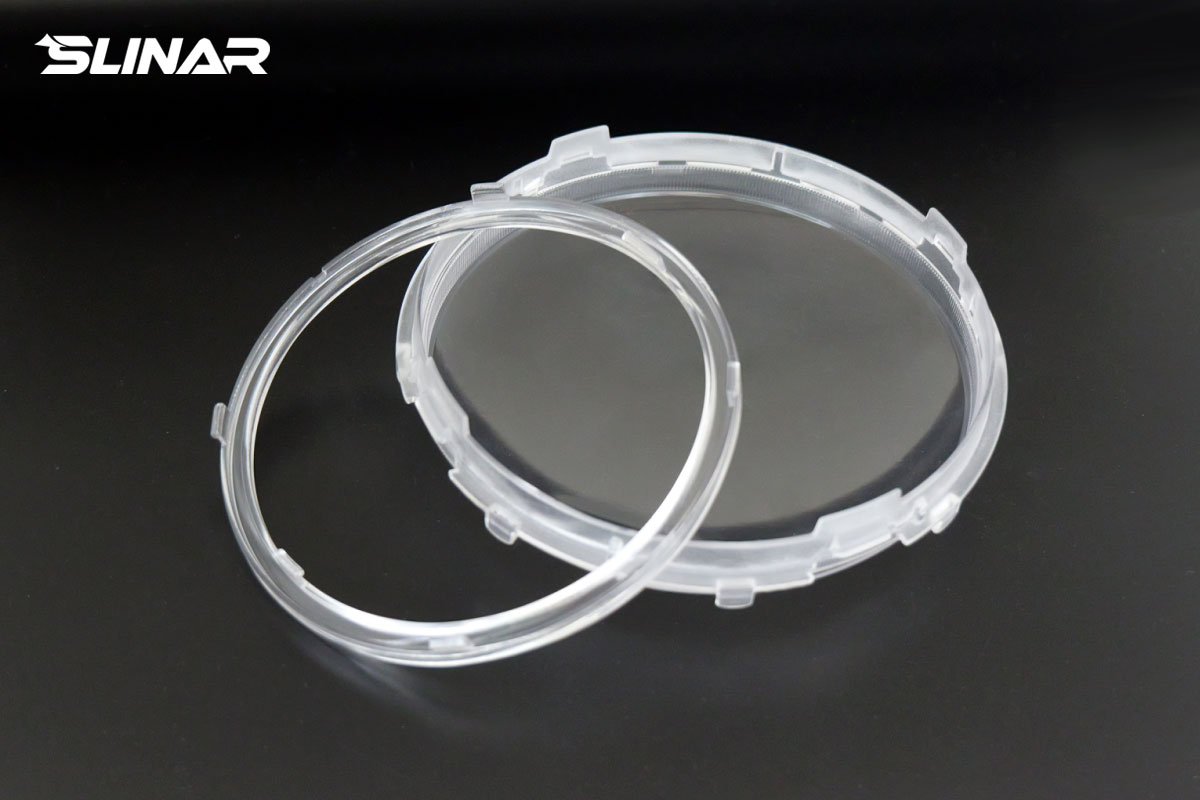

We produced an integrated e-bike outer snap ring with clear headlight lens cover using high-transparency polycarbonate (PC) 3D printing for an electric bicycle lighting assembly. This combined part serves two functions: an outer retention ring that snaps securely into the headlight housing, and a transparent inner lens cover that protects the LED module while transmitting light with minimal loss.

Polycarbonate was selected for its combination of optical transparency and mechanical strength — delivering ~90% light transmission comparable to glass, with impact resistance up to 250x that of glass and a tensile strength of 70-75 MPa . PC's glass transition temperature of ~147°C ensures the part maintains dimensional stability under the heat generated by high-power LED modules and exposure to sunlight.

For this project, we selected SLS (selective laser sintering) 3D printing for several reasons:

• Design integration: The snap ring and lens cover were combined into a single printable part, eliminating assembly steps and potential alignment issues.
• Complex geometry: SLS enables integration of snap-fit features, mounting bosses, and thin-wall lens sections in one build with no support structures.
• Functional testing: The printed PC parts exhibit near-production material properties, enabling real-world validation of snap-ring retention force and lens optical clarity.

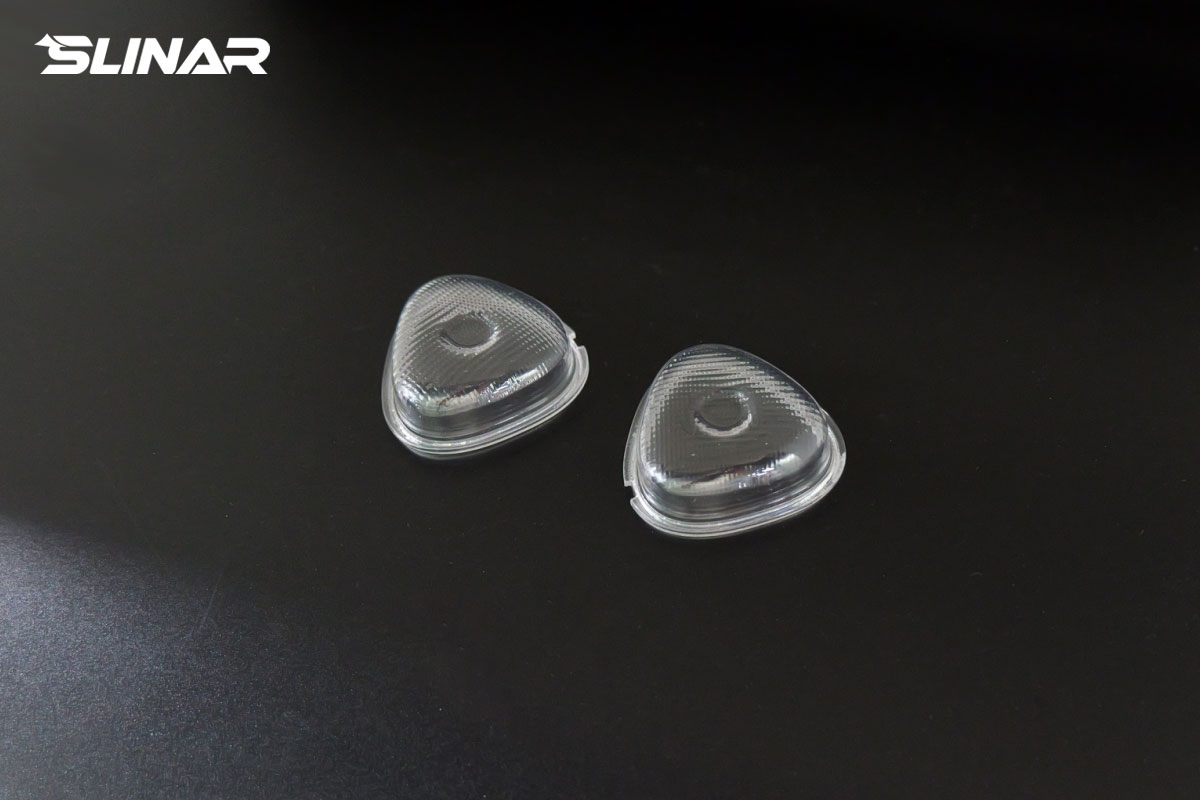

Post-processing included media blasting to achieve a uniform matte finish on the snap ring exterior, while the lens area was polished to restore optical clarity for light transmission.

Project Overview

Key Technical Highlights

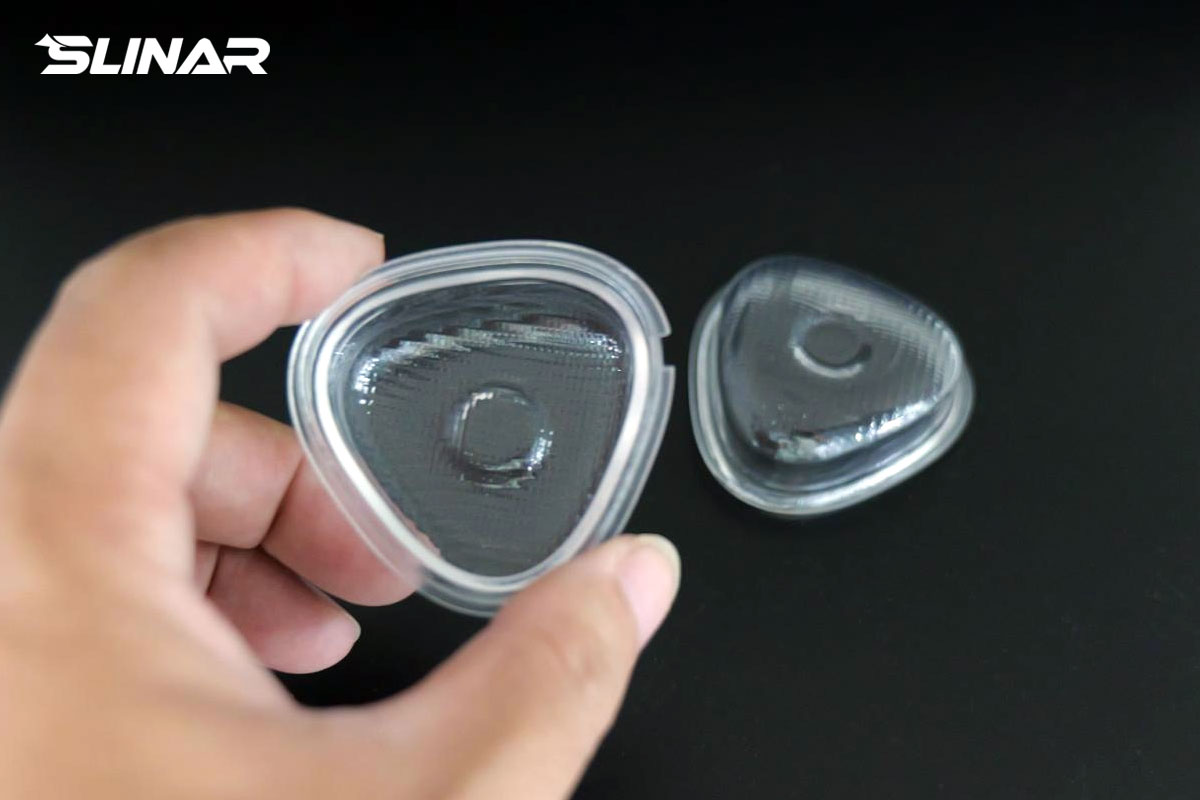

• Integrated Design Consolidation: The snap ring and lens cover were combined into a single printable part, eliminating assembly steps and reducing component count while ensuring precise alignment between the retention ring and optical surface.
• PC Material Performance: High-transparency PC delivers the optical clarity required for lighting applications (~90% light transmission) combined with the toughness needed for a retention ring that sees repeated flexing and snap-fit engagement. Research confirms PC's suitability for transparent parts requiring both durability and optical performance .
• Snap-Fit Reliability: PC's elongation properties provide the necessary flexibility for snap features. SLS printing enabled integration of snap hooks with optimized geometry for secure engagement and release cycles.
• Dual-Finish Post-Processing: The snap ring exterior received media blasting for a matte, non-reflective finish, while the lens area was polished to restore optical clarity for light transmission — achieving functional and aesthetic requirements in a single part.

Quality Verification

Dimensional accuracy verified via CMM/caliper measurement. Optical clarity inspected post-polishing. Snap-fit engagement force tested for retention reliability. UV stability assessed for outdoor e-bike application.

Industry Applications

Ideal for e-bike lighting assemblies, automotive lamp prototypes, outdoor equipment clear covers, and functional parts requiring optical clarity with mechanical strength.

Why Partner With Us?

• Expertise in high-transparency PC 3D printing for optical applications
• Design optimization for integrated snap-fit and lens features
• Post-processing for dual matte/clear finishes in a single part
• 12+ years of precision manufacturing experience across transportation and lighting sectors
