PA12 SLS 3D Printed Integrated Hinge Assembly with Mounting Plates and Positioning Stops

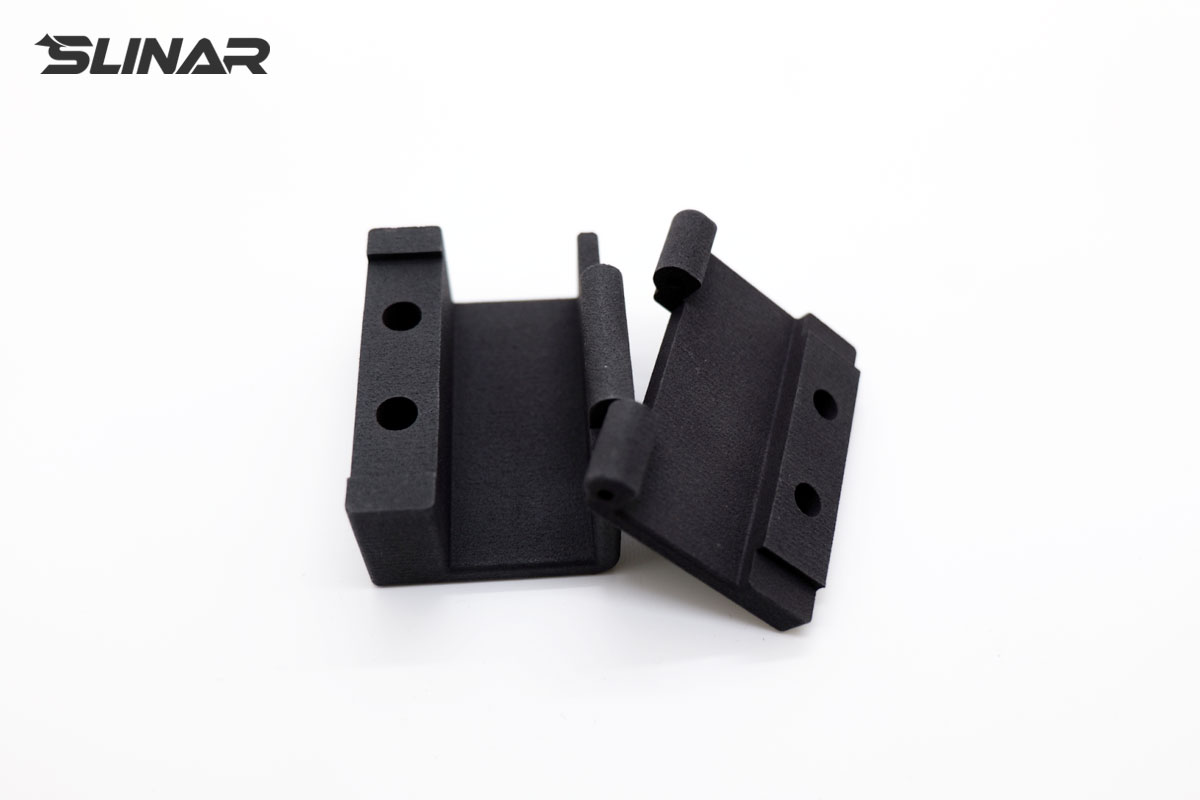

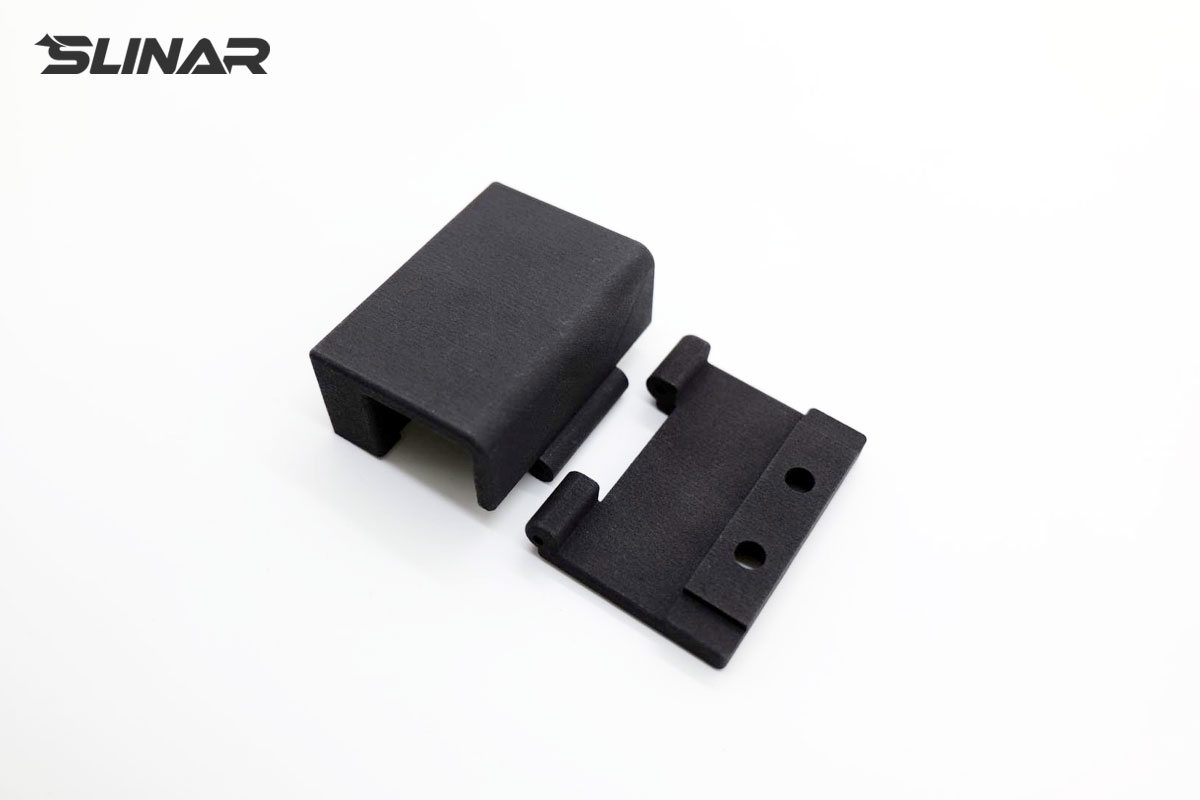

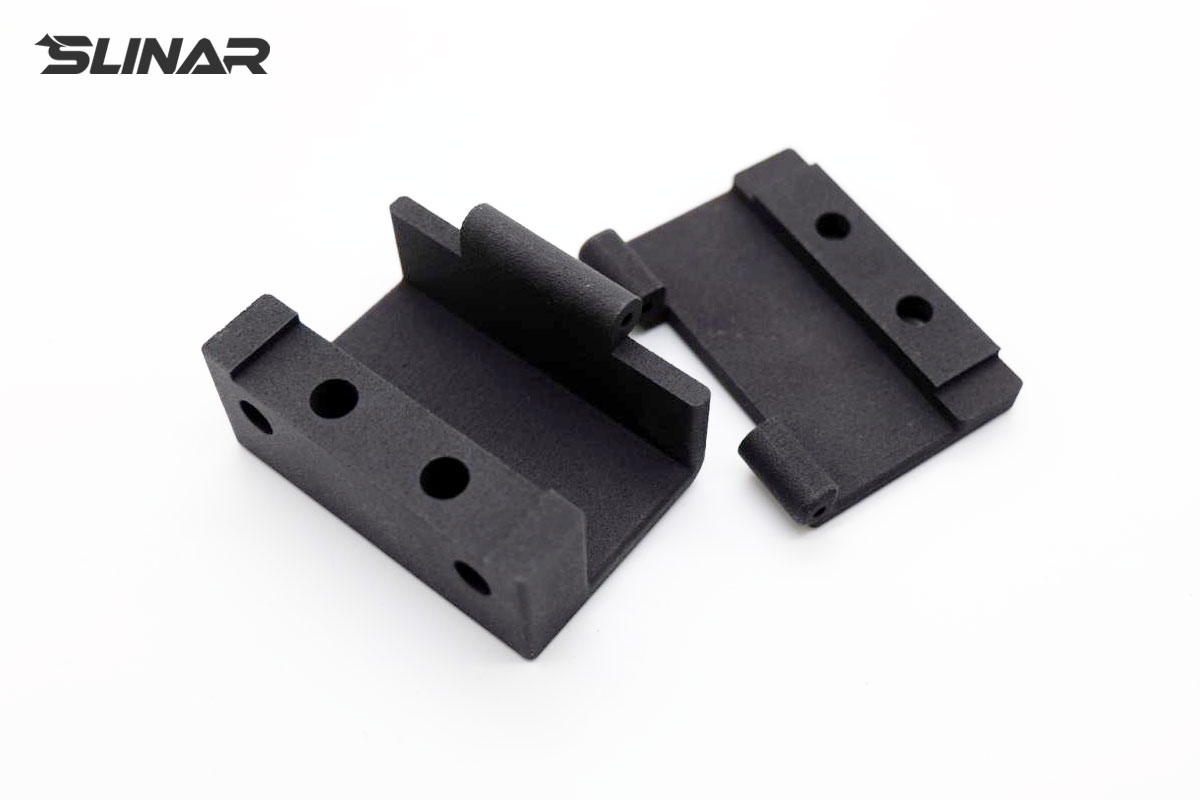

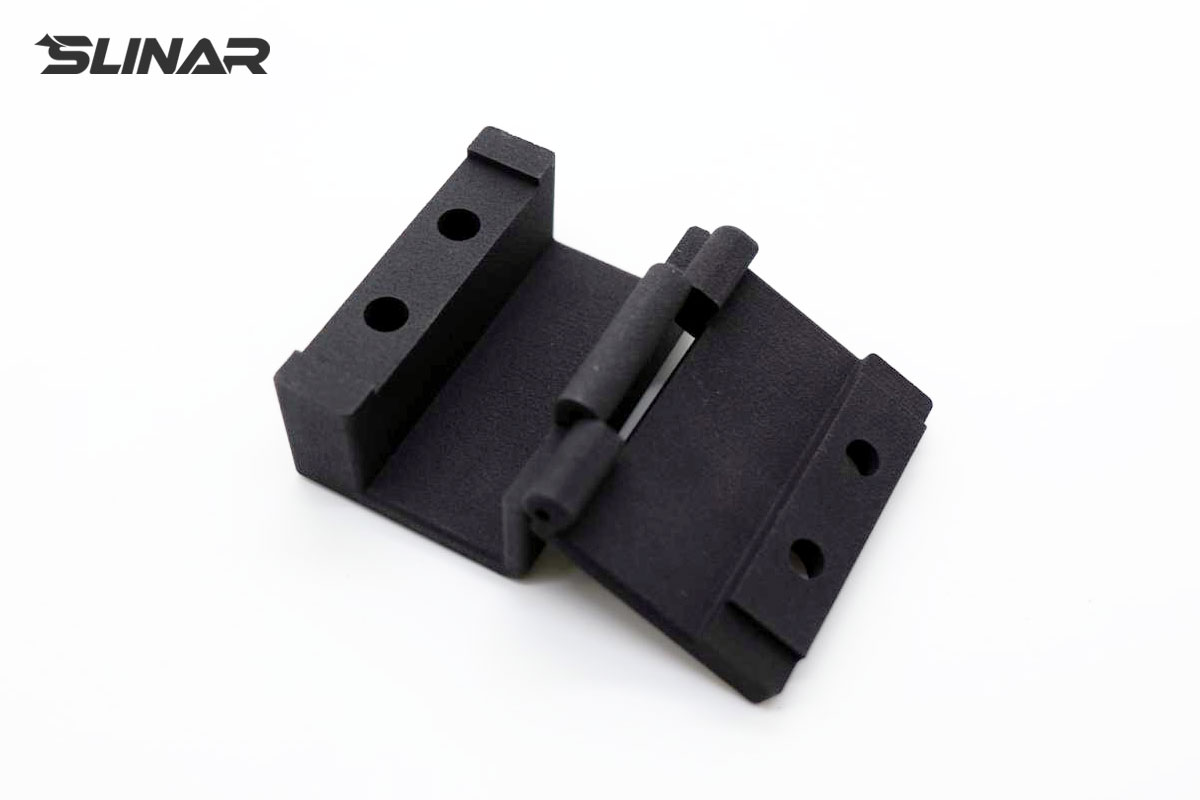

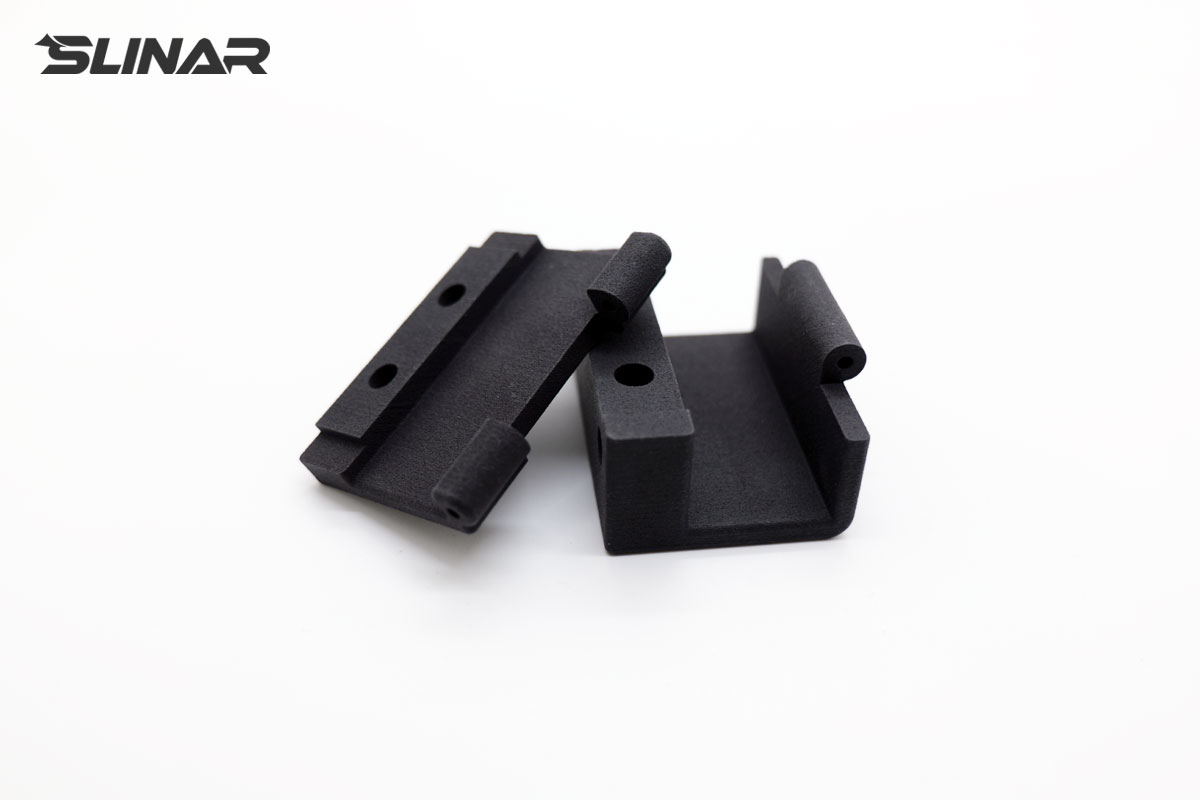

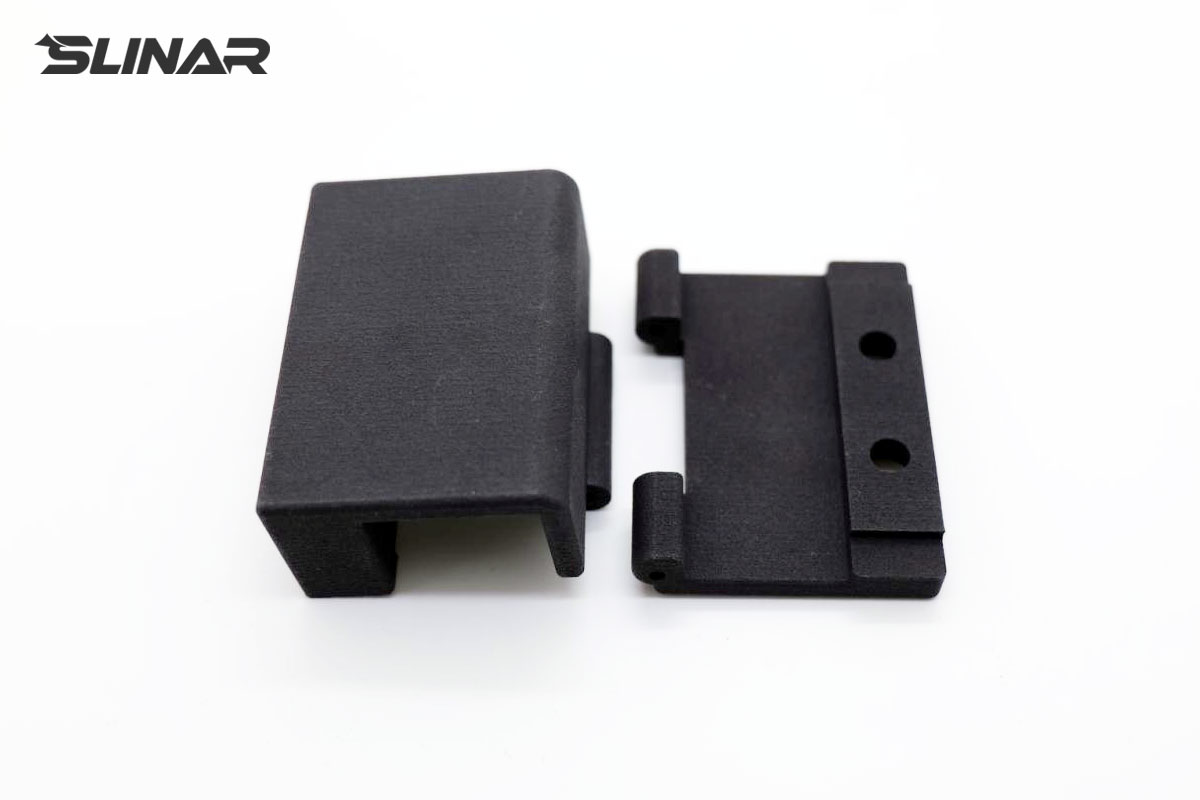

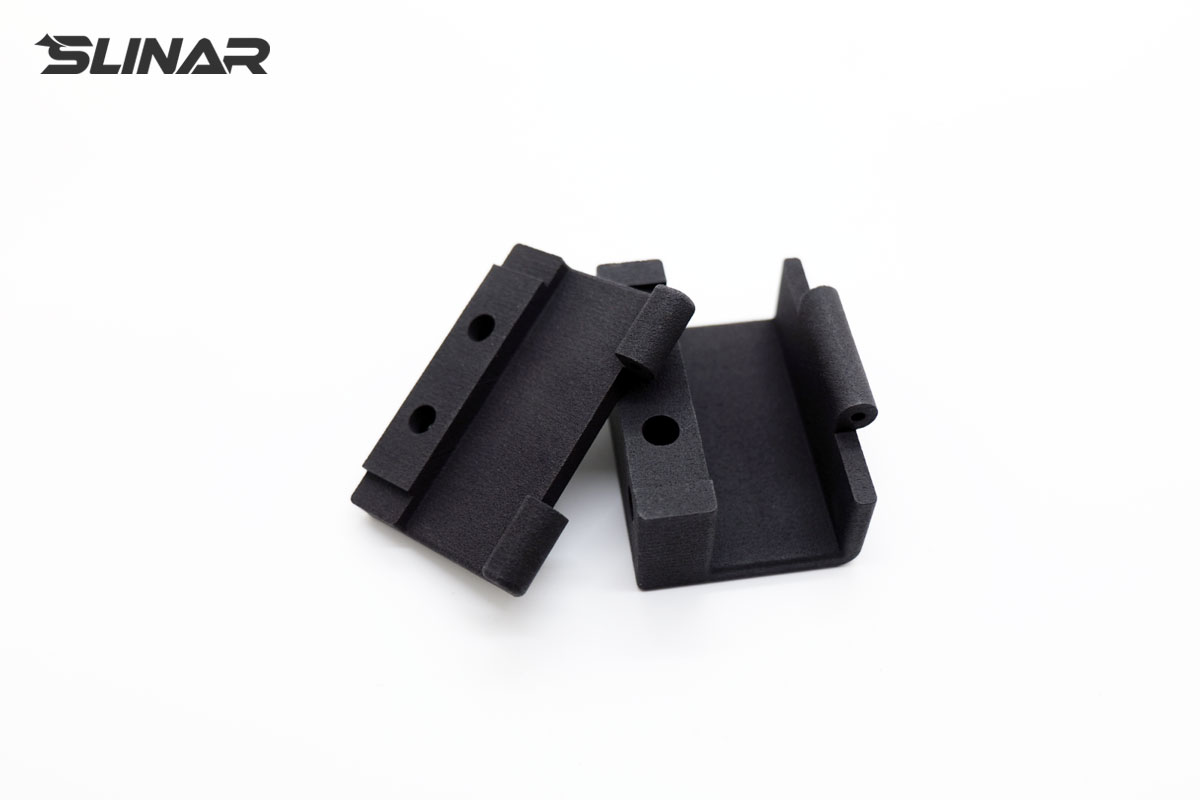

We produced a PA12 SLS 3D printed integrated hinge assembly for an equipment enclosure application. This one-piece hinge design incorporates both mounting plates and pivot features in a single printed component — with two mounting plates, each featuring two countersunk screw holes for secure attachment to equipment housings, instrument enclosures, or fixture panels, and integrated edge positioning stops that provide locating and alignment guidance during assembly.

PA12 (Nylon 12) was selected for its durability, impact resistance, and dimensional stability — making it suitable for functional hinge applications that require repeated pivot cycles and reliable attachment to mating surfaces. The SLS process enables printing of assembled moving parts in a single build, eliminating separate fabrication and assembly of hinge pins or pivot shafts.

Design integration included:

• Two mounting plates — left and right plates designed for attachment to enclosure/housing surfaces, each with two countersunk screw holes for flush fastener installation
• Integrated pivot joint — printed as a single moving assembly with clearance tolerances optimized for smooth rotation without binding
• Edge positioning stops — integrated limits that provide mechanical stop positions for consistent opening angles and alignment guidance during installation
• Countersunk screw holes — designed with countersink features for flat-head fastener seating, ensuring flush surface mating when attached to panels

Post-processing included support removal and media blasting for a uniform matte black finish.

Project Overview

Key Technical Highlights

• One-Piece Moving Assembly: SLS enables printing of complete hinge assemblies with moving pivot joints in a single build — eliminating separate hinge pins, bushings, or assembly operations. The integrated pivot design reduces component count and potential failure points.
• Mounting Plate Integration: Left and right mounting plates are printed as part of the same component, ensuring consistent alignment between the two hinge halves and the pivot axis. The countersunk screw holes provide flush fastener seating for secure panel mounting.
• Positioning Stops for Alignment: Edge stops provide mechanical limits for consistent opening angles and serve as positioning guides during installation — simplifying assembly and ensuring proper orientation when attached to mating surfaces.
• PA12 Hinge Durability: PA12's fatigue resistance supports repeated hinge operation cycles without degradation. Studies demonstrate SLS-printed PA12 components maintain consistent mechanical performance under cyclic loading conditions.

Quality Verification

Dimensional accuracy verified via CMM/caliper measurement. Pivot operation tested for smooth rotation through full range. Screw hole alignment and countersink depth verified with fastener fitment. Positioning stops validated for consistent stop angles.

Industry Applications

Ideal for equipment enclosure hinges, instrument housing pivot assemblies, fixture panel mounting hardware, and functional prototypes requiring integrated moving joints and attachment features.

Why Partner With Us?

• Expertise in PA12 SLS printing for integrated moving assemblies
• Design optimization for one-piece hinge and pivot features
• Integrated mounting plates with countersunk screw holes and positioning stops
• 12+ years of precision manufacturing experience across equipment and industrial sectors
