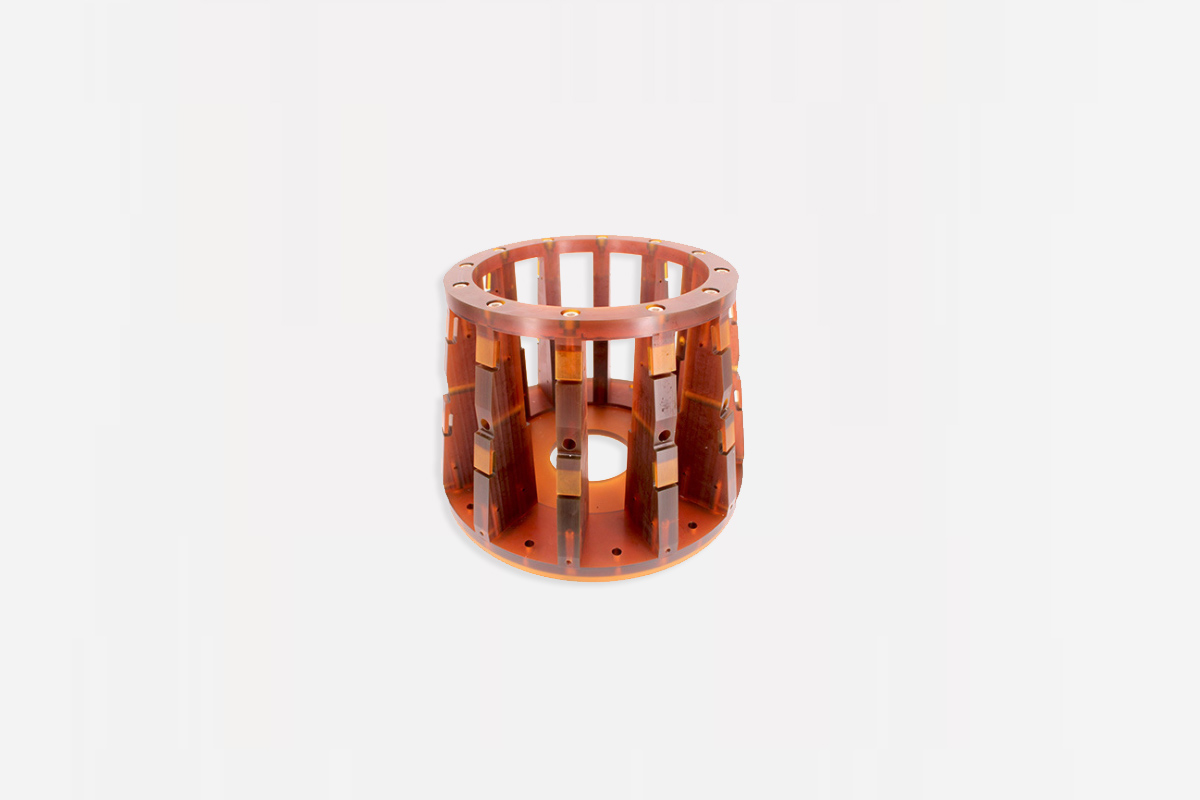

PI (Polyimide) CNC Machining

PI, or polyimide, is a high-performance engineering polymer known for its exceptional thermal stability, mechanical strength, and chemical resistance. It can operate continuously at temperatures up to 300°C and withstand short-term excursions well above that. PI also offers excellent electrical insulation, low outgassing in vacuum environments, and good radiation resistance. These properties make it a common choice for semiconductor equipment, aerospace components, electrical insulators, and precision parts in high-temperature or vacuum applications where most other polymers would degrade.

Unfilled PI is the standard grade for general-purpose parts requiring thermal stability and electrical insulation. Glass-filled PI offers higher stiffness and lower thermal expansion, making it suitable for structural components. Graphite-filled or MoS₂-filled PI grades provide improved wear resistance and lower friction for bearing and sliding applications. PI is supplied as rod, plate, and tube for machining, and the grade should be specified on the drawing because filled and unfilled versions have different machining behavior and mechanical properties. Vespel is one common trade name, but the material is also supplied under other brands and as generic polyimide stock.

PI is more difficult to machine than PEEK or PEI. It is harder and more brittle, with a greater tendency to chip and crack at edges and corners, particularly in thin sections. Tool wear is higher because the material is abrasive, especially in glass-filled grades. Sharp carbide tooling, light cuts, and rigid setups are essential. The material also tends to produce fine dust rather than chips, so dust extraction and coolant management matter for both surface quality and operator safety. PI is machinable, but it rewards careful process planning rather than aggressive parameters.

Standard machining holds ±0.02 to ±0.05mm. Precision work holds ±0.01mm on critical features. PI's low thermal expansion and good dimensional stability make it more predictable than many plastics for tight-tolerance work. The main risks are edge chipping and cracking, particularly on thin walls or sharp internal corners. Stress-relief annealing before finish machining is advisable for parts with tight tolerances or complex geometry, because machining-induced stress can cause slow cracking or dimensional drift after the part is put into service.

Yes, for most precision parts. PI stock carries internal stress from the manufacturing process, and machining removes material unevenly, which can cause warping or cracking. Annealing the stock before machining, and sometimes between roughing and finishing, reduces this risk. The same applies to finished parts that will see elevated temperatures in service: stress relief improves dimensional stability and reduces the chance of stress cracking. Because PI is often used in applications where failure is expensive, the annealing step is not one to skip.

As-machined PI has a smooth surface with visible tool marks, typically Ra 1.6 to 3.2μm. Bead blasting produces a uniform matte finish. Polishing can achieve a higher gloss where appearance or low friction matters. Because PI is usually specified for functional rather than decorative reasons, coatings are uncommon, though conformal coatings can be applied where additional electrical insulation or environmental protection is needed. PI's natural color ranges from amber to dark brown depending on the grade and filler.

Semiconductor: wafer handling components, chamber parts, and insulators requiring low outgassing and high-temperature resistance. Aerospace: thermal insulation components, bushings, and structural parts in high-temperature zones. Electrical: insulators, connector bodies, and standoffs. Industrial: bearing cages, wear rings, and seal components in high-temperature or chemical environments. PI is often chosen where PEEK's temperature limit is insufficient or where low outgassing in vacuum is a hard requirement.

PI offers higher continuous service temperature, up to roughly 300°C versus 260°C for PEEK, and lower outgassing in vacuum environments. It is also more expensive and more difficult to machine because of its brittleness and abrasiveness. PEEK is tougher, easier to machine, and available in implantable grades. For applications near or above 260°C, or where low outgassing is critical, PI is the appropriate choice. For lower temperatures and applications requiring toughness, PEEK is usually the more practical and cost-effective option.

Milling up to 650 × 550 × 450mm. Turning up to 600mm diameter and 1,500mm length. PI stock is typically available in smaller sections than commodity plastics, so very large parts may require assembly or may fall outside standard stock availability. Because PI is brittle and expensive, large parts also carry higher risk during machining and handling, so the geometry and stock size should be reviewed during quoting.

Material test reports with grade identification and lot traceability. Dimensional inspection reports. Certificates of conformance. For semiconductor applications, outgassing data and purity certificates are available on request. For aerospace applications, thermal and flammability test data is provided. If stress-relief annealing is performed, the heat treatment record is included. Because PI is often specified for critical applications, the material certificate and the processing record are usually reviewed as part of the customer's qualification process.
