Precision 7075 Robot Joint Bracket with Matte Black Anodizing and Long-Span Structural Control

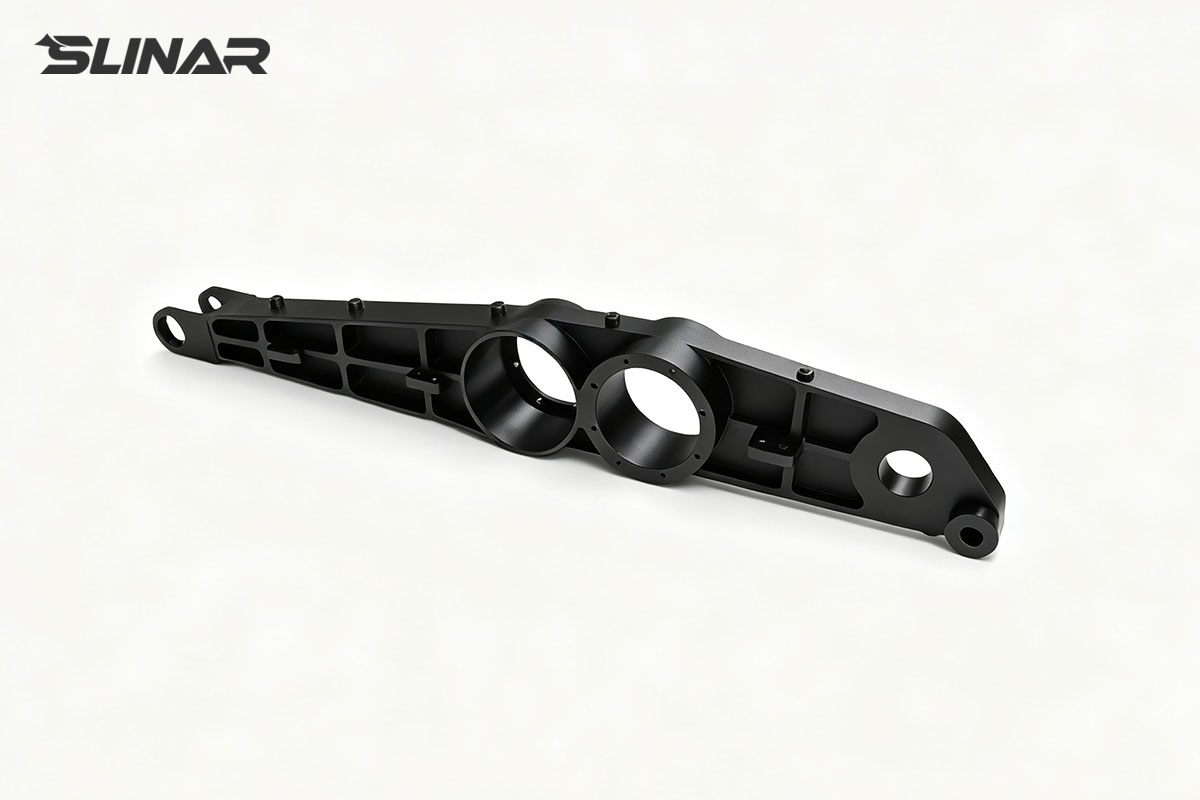

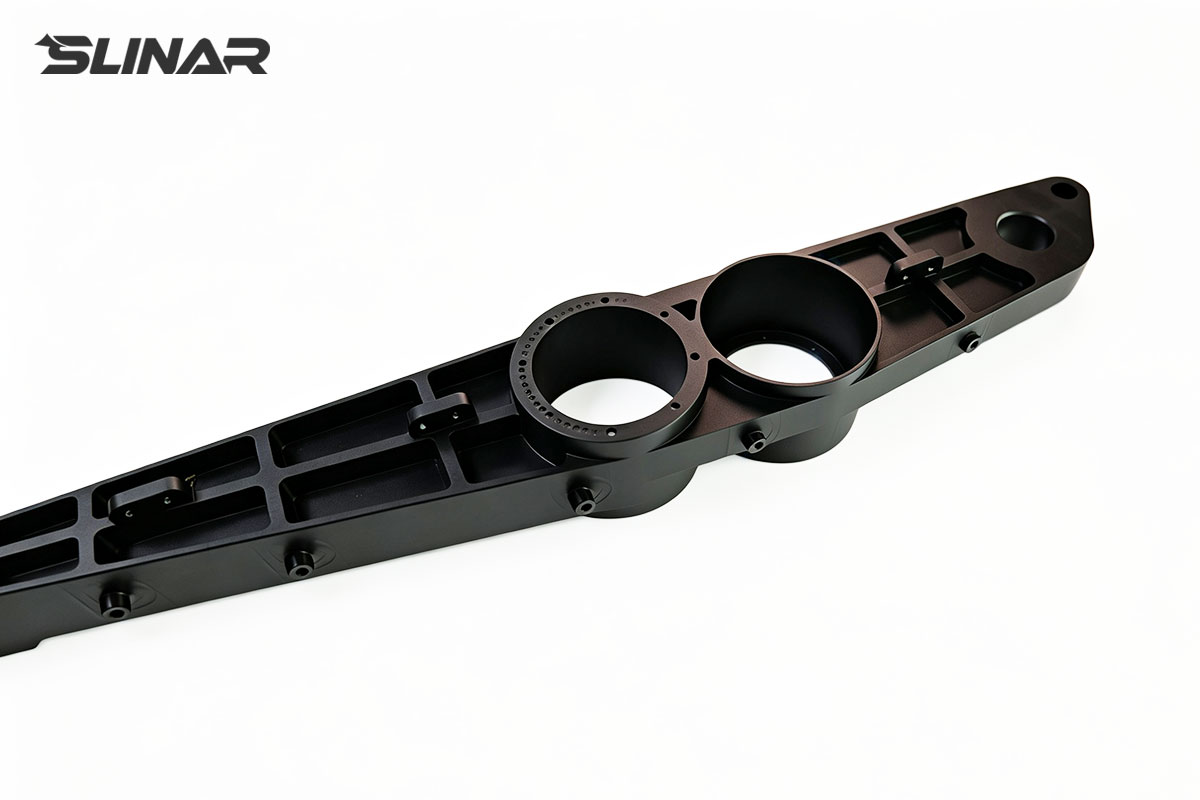

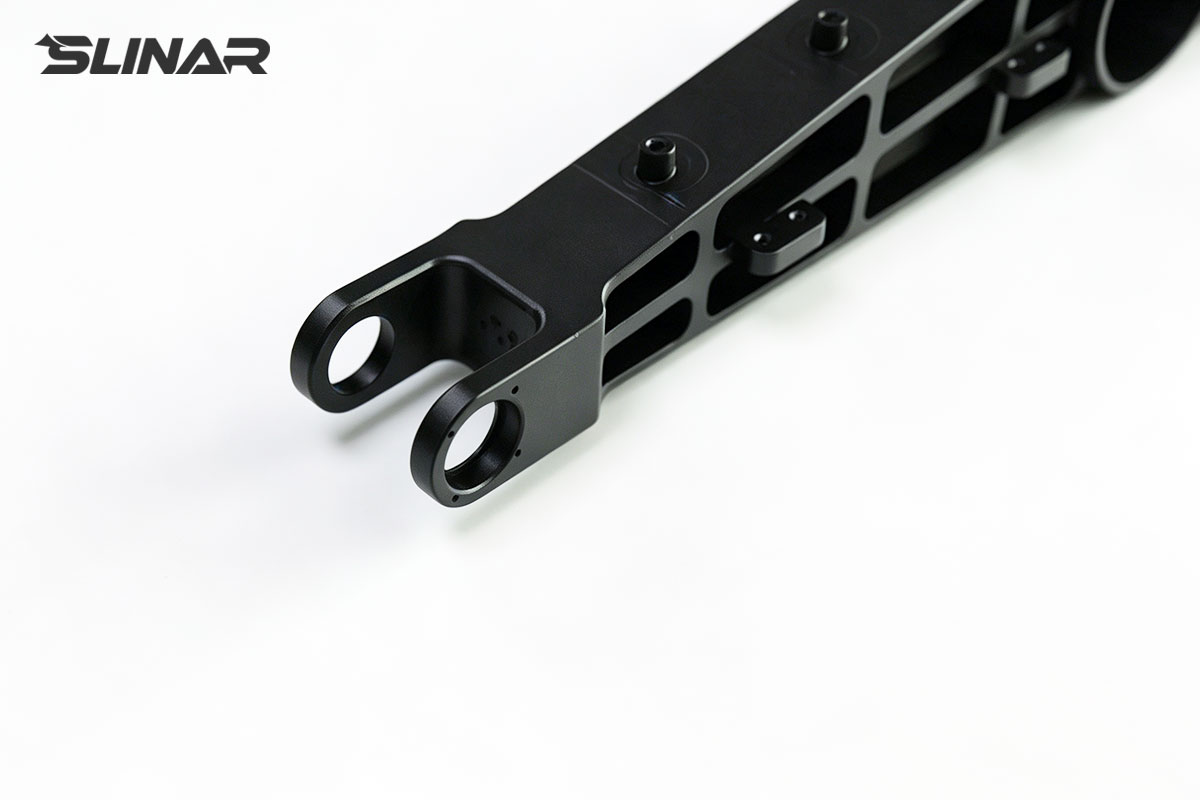

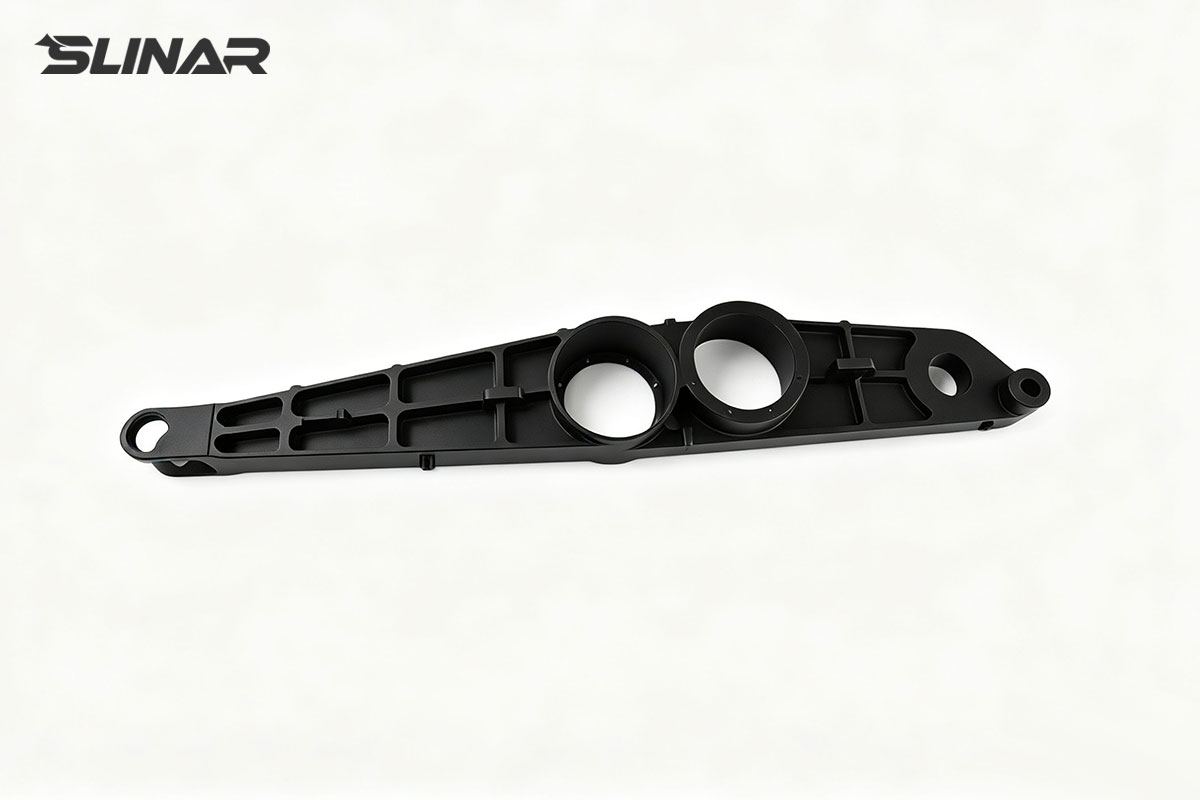

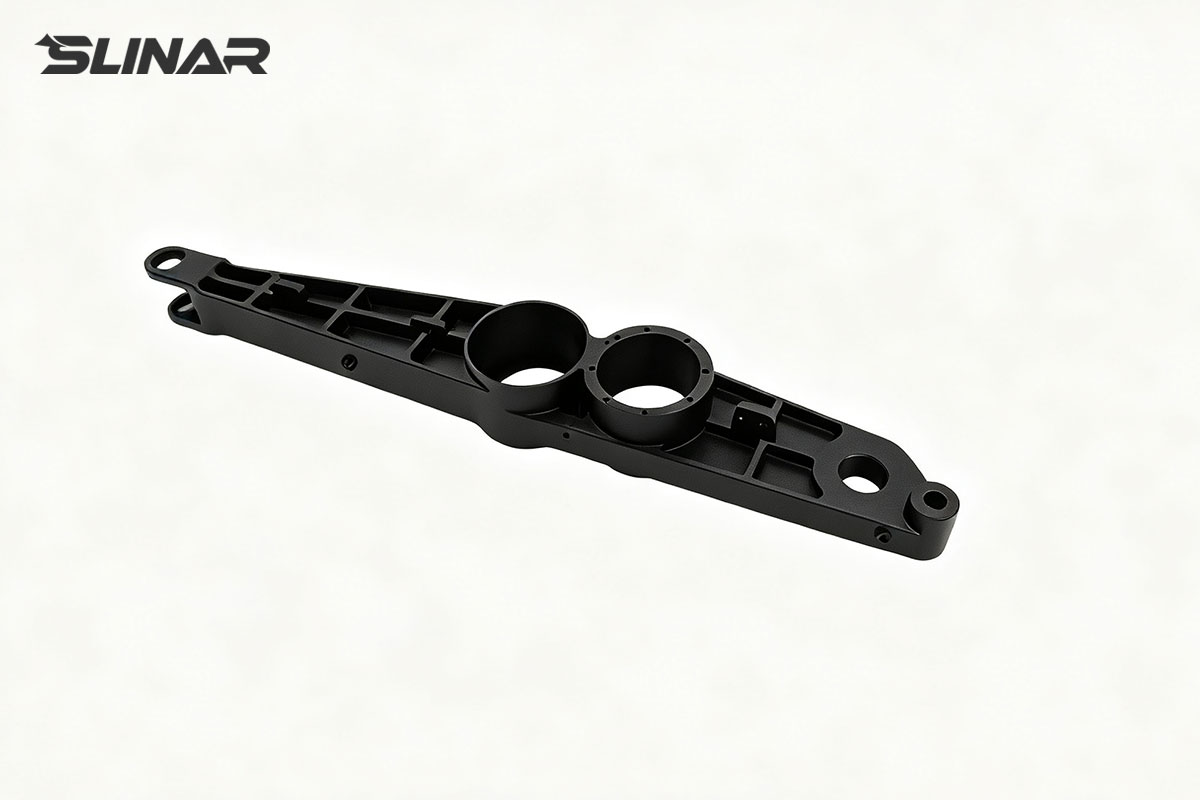

We manufactured a precision 7075 aluminum robot joint bracket with matte black anodized finish for a robotics application. At approximately 450mm in length, this structural bracket spans a significant distance in the robot's joint assembly — requiring both high strength-to-weight ratio and dimensional stability. 7075-T6 aluminum was selected for its strength (tensile up to 572 MPa), but long-span 7075 structures present specific challenges: the material's high strength comes with residual stresses from heat treatment that can cause distortion during machining , and thin-walled sections are prone to deflection under cutting forces . Additionally, 7075 alloy's composition can produce surface defects during anodizing — black streaks caused by coarse crystalline phases and uneven second-phase particle distribution . For this 450mm bracket, we implemented stress-relief sequencing with staged roughing and stabilization periods to manage distortion , optimized fixturing to support the long span during machining, and adjusted anodizing process parameters (pretreatment and bath conditions) specifically for 7075 to minimize black stripe formation . The matte black anodized finish (Type II) provides corrosion resistance and the low-reflectivity surface preferred in robotic applications .

Project Overview

Key Technical Highlights

• Long-Span Distortion Control: 450mm length makes the bracket susceptible to stress-induced warpage — 7075's residual stresses from quenching can release unevenly during material removal . We applied staged roughing with intermediate stabilization periods before final finishing , letting residual stresses dissipate while maintaining geometric accuracy across the full span.
• 7075-Specific Anodizing Quality: 7075 alloy is prone to black streaks during anodizing — caused by coarse crystalline phases and uneven second-phase particle distribution in the material's center sections . Our anodizing process parameters (pretreatment, bath temperature, current density) were optimized specifically for 7075 to ensure uniform black finish without streaks .
• Matte Black Finish: Type II anodizing with matte black dye provides corrosion resistance and a low-reflectivity surface — reducing glare in robotic vision and inspection environments. Matte finishes are commonly specified for robotic structural components .

Quality Verification

CMM inspection verified dimensional accuracy (±0.02mm) and long-span flatness. Anodized surface inspected for uniformity, color consistency, and absence of black streaks or surface defects. Matte finish texture verified against specification.

Industry Applications

Ideal for robot joint brackets, robotic structural components, long-span automation parts, and high-strength robotics applications requiring surface finish consistency.

Why Partner With Us?

• Proven expertise in long-span 7075 bracket machining with distortion control
• 7075-optimized black anodizing processes for consistent surface quality
• Controlled finishing for defect-free matte appearance
• 12+ years of precision manufacturing experience across robotics and automation sectors
