Grinding machine center

CNC (Computer Numerical Control) machining is an essential automated processing technology in modern manufacturing. It controls the movement of machine tools through computer programs, enabling high-precision, high-efficiency processing of complex-shaped parts. As a type of CNC machine tool, grinding machines play a crucial role in CNC machining. Below is a detailed analysis of the application of grinding machines in CNC machining:

I. Types and Characteristics of Grinding Machines

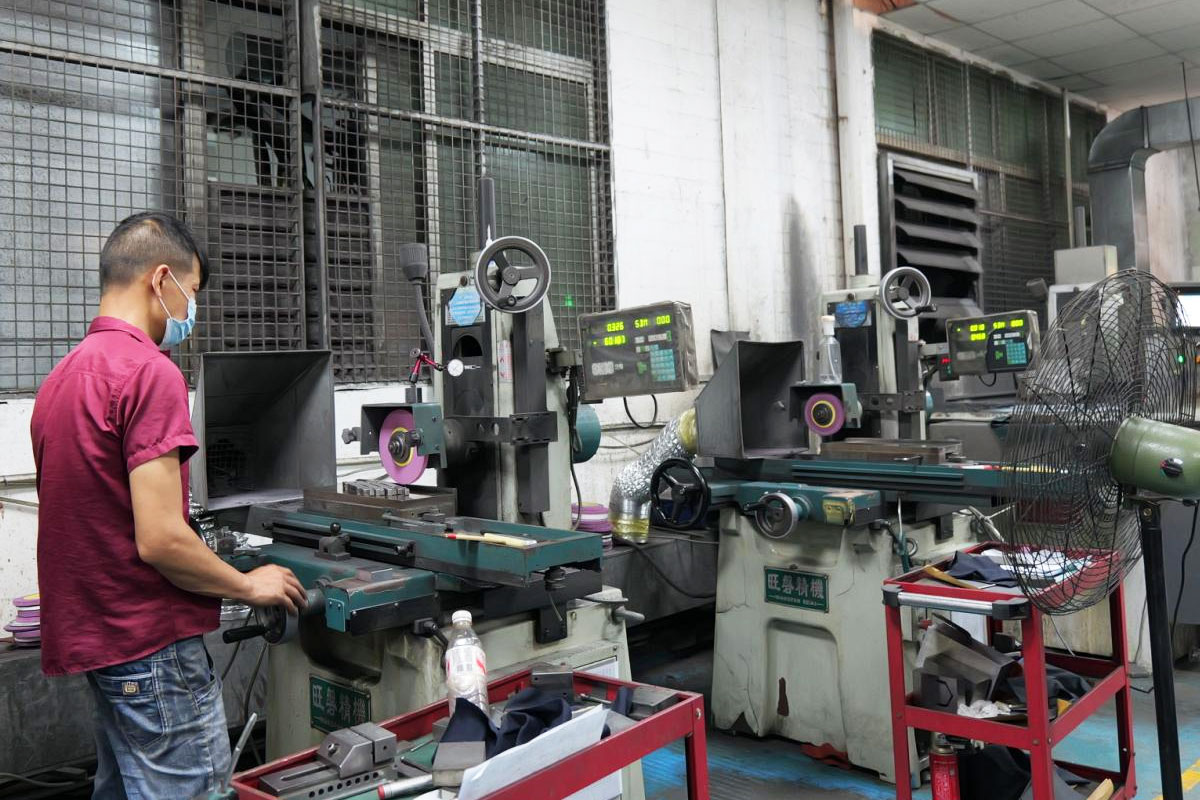

1、Surface Grinder
Used for processing the flat surfaces and end faces of workpieces, widely applied in mold manufacturing and precision part processing.
Suitable for high-precision surface grinding with a high degree of surface finish.
The machine tool structure is stable and rigid, suitable for various types of surface grinding.
Equipped with magnetic chucks or other fixtures for easy workpiece clamping.

2、Cylindrical Grinder
Used for grinding the external cylindrical surfaces of workpieces, widely used in the precision processing of shaft and sleeve parts.
Capable of high-precision cylindrical grinding for various types of external cylindrical parts.
Combines tool and workpiece rotational movements for high grinding efficiency and surface quality.
The machine tool has good rigidity, suitable for heavy-cut cylindrical processing.

3、Internal Grinder
Primarily used for grinding the internal bores of parts, suitable for high-precision internal bore processing and finishing.
Dedicated to internal bore grinding, capable of achieving high-precision internal bore processing.
The tool can reach deep into the part, suitable for processing blind holes and deep holes.
The machine tool structure is rigid and stable, suitable for prolonged grinding.

4、Centerless Grinder
Does not require clamping of the workpiece, suitable for efficient grinding of large batches of external cylindrical parts.
No fixtures are needed; the workpiece is positioned by guide wheels and grinding wheels, suitable for large-batch processing.
High grinding speed, suitable for high-efficiency cylindrical grinding.
The machine tool structure is compact, occupying little space and convenient for maintenance.

II. Application of Grinding Machines in CNC Machining

1、High-Precision Part Processing
CNC grinding machines play a significant role in the processing of high-precision parts in fields such as aerospace and medical equipment due to their high precision and stability. These fields have extremely high requirements for part precision and surface finish, which CNC grinding machines can meet.
2、Complex Shape Part Processing
Although grinding machines are mainly used for flat, cylindrical, and internal grinding, with technological advancements, some special CNC grinding machines can also process parts with complex shapes. For example, through multi-axis simultaneous control technology, CNC grinding machines can achieve any complex shape processing in three-dimensional space.
3、Mass Production
In fields such as automotive manufacturing and electronic device production, CNC grinding machines are widely used in the production of large batches of parts due to their high efficiency and automation. These fields require rapid and accurate production of a large number of parts, which CNC grinding machines can fulfill.

III. Advantages of CNC Grinding Machines

1、High Precision
CNC grinding machines can achieve micron-level processing accuracy, ensuring consistency among workpieces. This is particularly important for products requiring high precision and consistency.
2、High Efficiency
CNC grinding machines can operate continuously and automatically, significantly improving production efficiency. Especially in mass production, CNC grinding machines can complete processing tasks unattended, reducing manual intervention.
3、High Level of Automation
CNC grinding machines employ digital control and automated processing workflows, reducing labor input and product costs. Additionally, advanced CNC grinding machines are equipped with online measurement and feedback systems for real-time detection and correction during processing.
4、Versatility
CNC grinding machines can be adjusted according to different production and processing requirements, possessing multiple production and processing functions to meet various production needs.

In summary, the application of grinding machines in CNC machining is extensive and important. With their advantages of high precision, high efficiency, and high automation, they play an irreplaceable role in various industries. As technology continues to advance and application fields expand, CNC grinding machines will continue to make significant contributions to the development of modern manufacturing.
