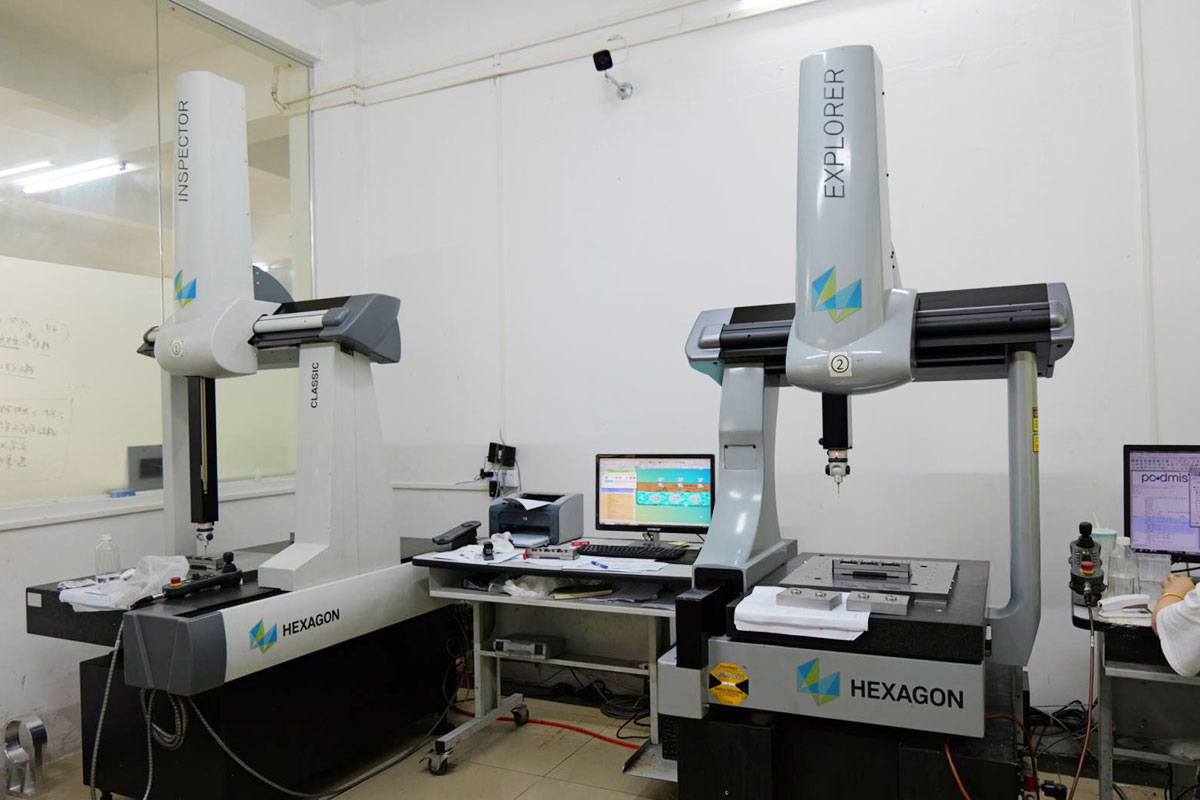

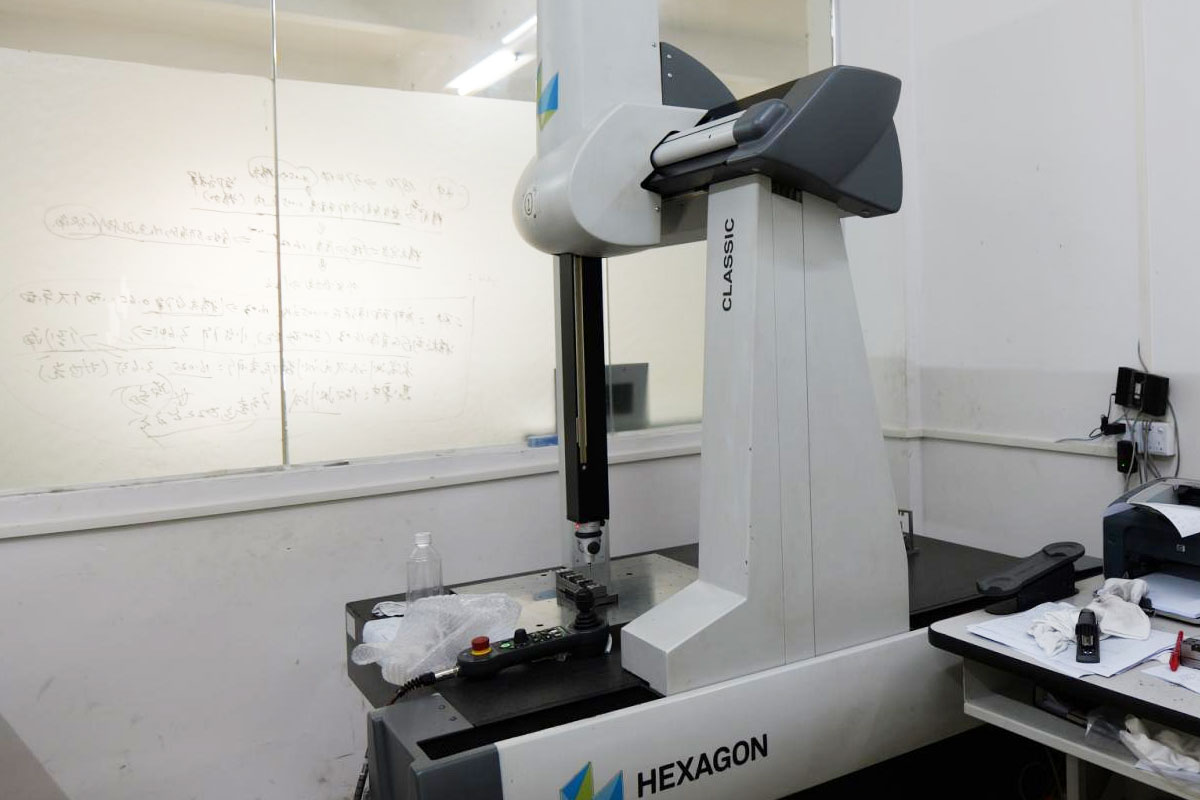

CMM workshop

The CMM three-coordinate measuring machine (also known as the three-dimensional coordinate measuring machine) plays a pivotal role in CNC processing, with the following main functions:

1、High-Precision Measurement

Renowned for its high precision, the CMM three-coordinate measuring machine can achieve measurement accuracy at the micrometer or even nanometer level. This is crucial for CNC processing, which often requires strict dimensional control and shape accuracy. Through the CMM, various dimensional parameters of the workpiece, such as length, width, height, diameter, and hole spacing, can be accurately and rapidly measured to ensure that the processed workpiece meets the design requirements.

2、Comprehensive Detection Capabilities

The CMM three-coordinate measuring machine not only possesses high precision but also comprehensive detection capabilities. It can measure the form tolerances of workpieces (such as profile, roundness, straightness, etc.) as well as the positional tolerances (such as parallelism, perpendicularity, coaxiality, symmetry, etc.). This comprehensive detection capability ensures that the workpiece maintains good performance and stability during assembly and use.

3、Efficient Detection Process

The CMM three-coordinate measuring machine features rapid data processing capabilities and an intuitive operating interface, which can significantly shorten the measurement cycle and improve detection efficiency. In the process of CNC processing, first-article inspection, in-process inspection, and final inspection are all indispensable steps. The CMM can quickly complete these inspection tasks to ensure the efficient progress of the processing. Additionally, it can exchange information with CNC machines to achieve real-time control of the processing process, further enhancing production efficiency.

4、Intelligence and Automation

Modern CMM three-coordinate measuring machines integrate advanced automation control systems and intelligent software, realizing a fully automated process from measurement path planning, data acquisition, to result analysis. This intelligence and automation enable the CMM to seamlessly integrate into the enterprise's digital production management system, achieving seamless connection between measurement data and production processes. This not only improves production efficiency but also reduces human error and enhances product quality.

5、Specific Application Examples

First-Article Inspection: Before mass production, the CMM three-coordinate measuring machine can inspect and measure the first product to ensure it meets the design requirements and quality standards.

In-Process Inspection: During the CNC processing, different processing steps will alter the dimensions and shapes of the parts. The CMM can perform in-process inspections after each step to promptly identify and correct any issues that arise during processing.

Final Inspection: After the CNC processing is completed, the CMM three-coordinate measuring machine can conduct a final inspection on the product to ensure its quality meets the requirements.

In summary, the CMM three-coordinate measuring machine plays a crucial role in CNC processing. Its high precision, comprehensive detection capabilities, efficient detection process, intelligence and automation, as well as specific application scenarios, make it an indispensable tool in CNC processing.
