Precision 6061 Split-Type Handheld Device Aluminum Enclosure with Bead-Blasted Blue Anodizing for Medical Instruments

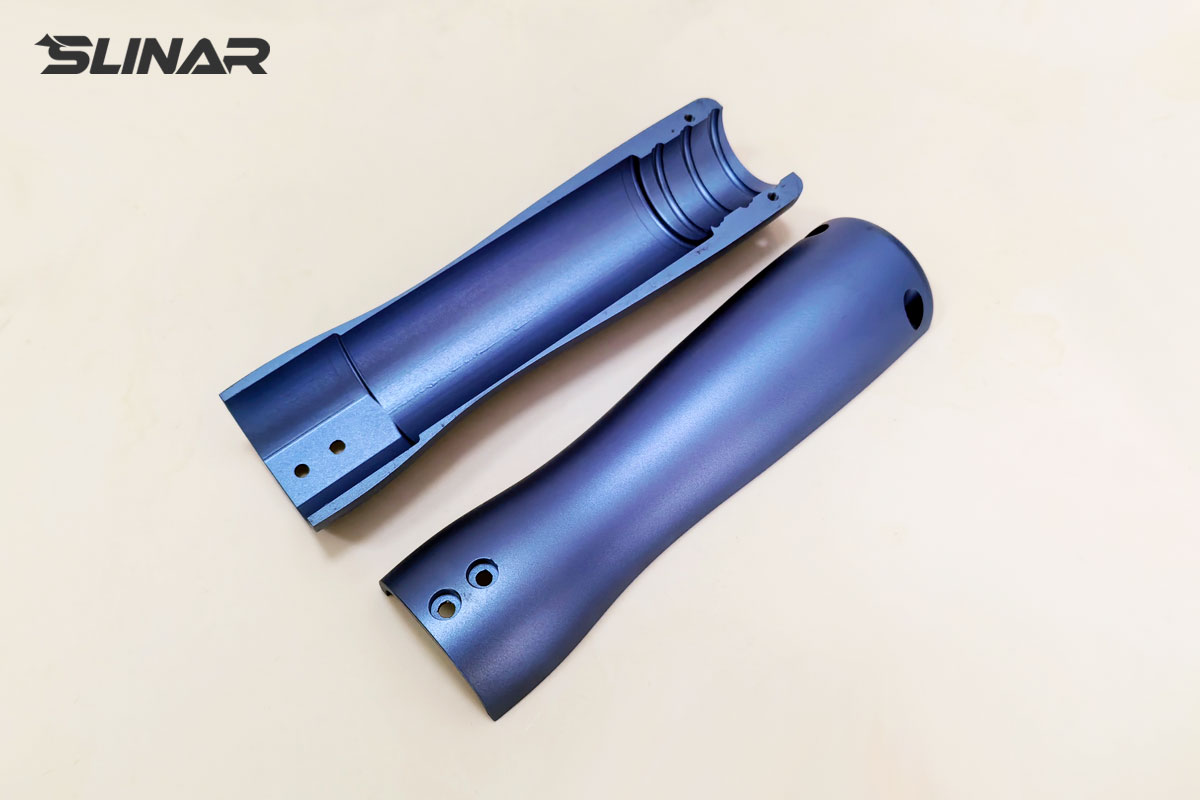

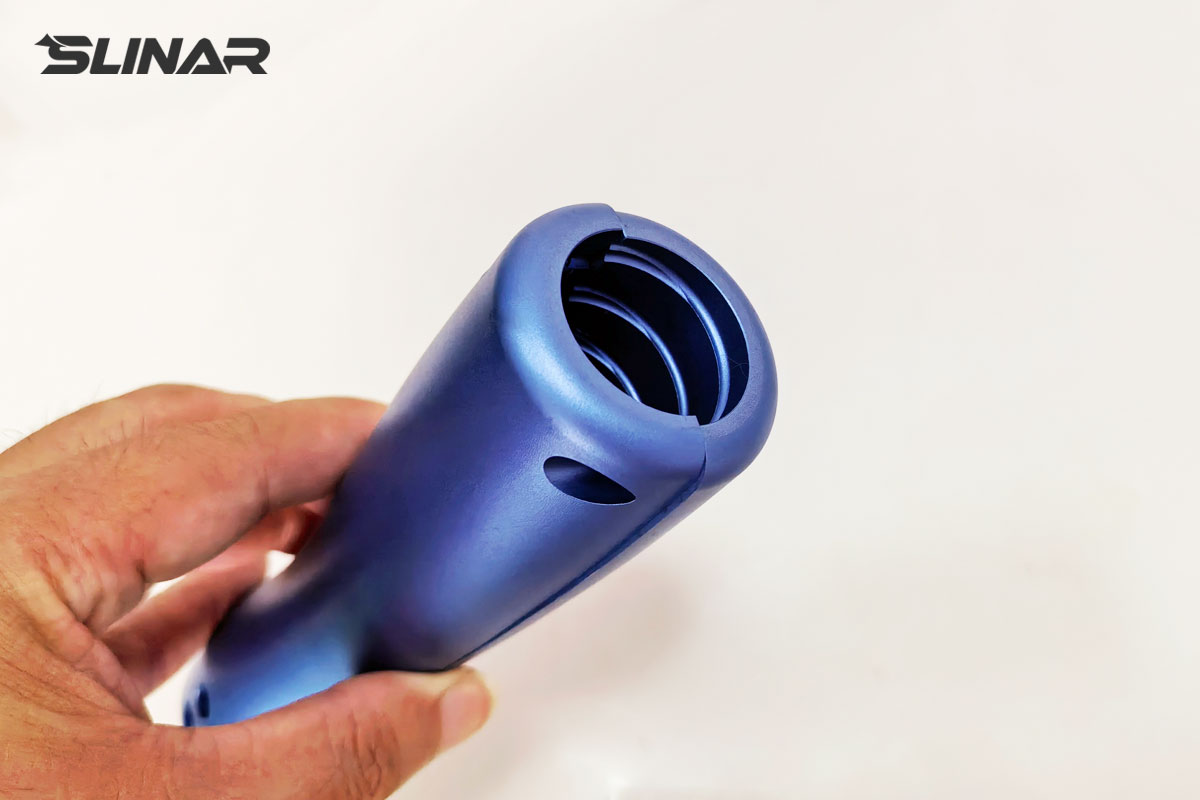

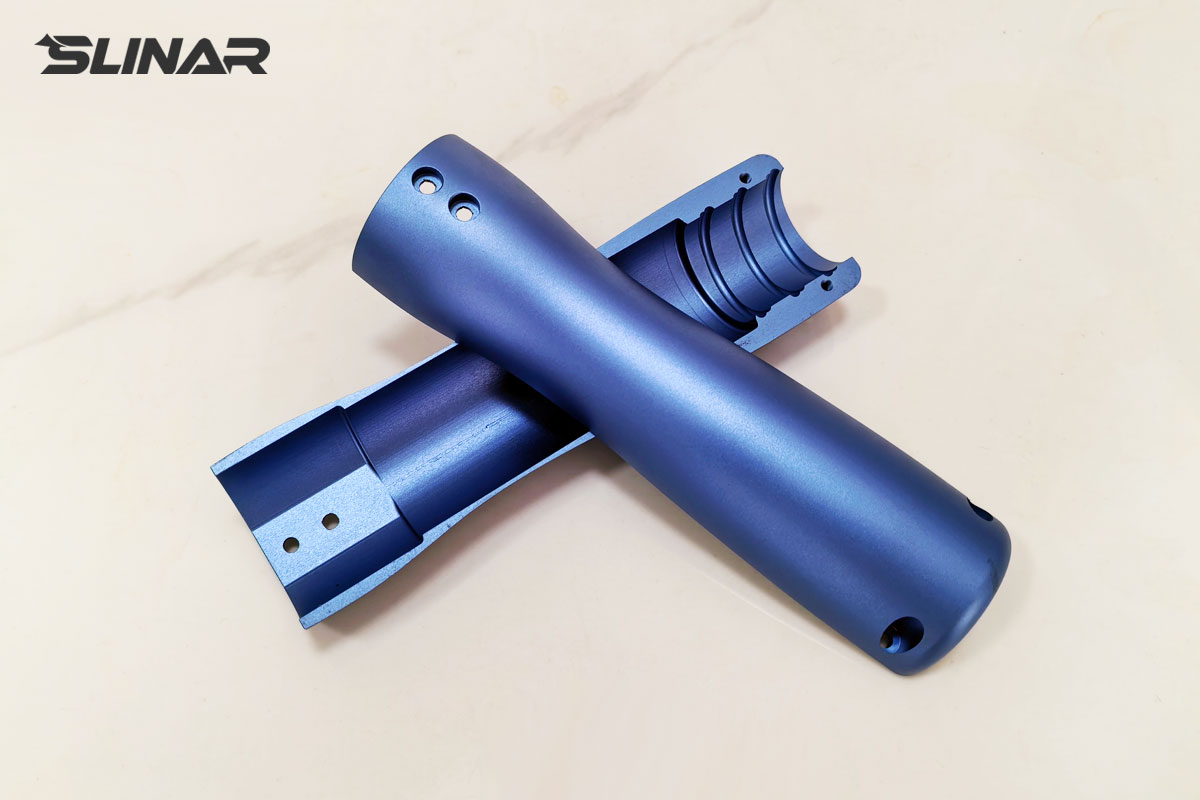

We manufactured a precision 6061 split-type handheld device aluminum enclosure for a medical instrument application. This two-piece clamshell housing consists of upper and lower half-shells that mate precisely to form the instrument body — requiring tight fit control between mating surfaces, accurate alignment of internal mounting features, and a consistent cosmetic finish. The "clamshell" or "split-handle" design is a common approach in medical handheld devices, balancing functional access with a clean sealed appearance.

Medical-grade aluminum enclosures like this one typically use 6061 alloy for its excellent machinability, corrosion resistance, and ability to achieve a uniform anodized finish. Research indicates that Type II anodizing of aluminum for medical housings strengthens corrosion resistance and minimizes biological reactivity while maintaining electrical performance. Each half-shell wAs Machined from 6061 billet, with mating surfaces held to precise tolerances to ensure flush assembly without gaps. The enclosures then underwent bead-blasting to create a uniform matte texture, followed by blue anodizing (MIL-A-8625 Type II) for a consistent cosmetic appearance and enhanced surface protection for medical environments.

Project Overview

Key Technical Highlights

• Split-Shell Mating Precision: Upper and lower half-shells machined with complementary mating surfaces to ensure flush closure without gaps — critical for medical device ergonomics and cleanability.
• Turn-Mill Integration: Complex features combining cylindrical profiles and milled pockets completed in single-setup turn-mill machining — maintaining geometric alignment between shell halves for consistent assembly.
• Bead-Blasted Surface Preparation: Uniform bead-blasting creates consistent matte texture across both half-shells before anodizing — eliminating visible tool marks and ensuring color uniformity.
• Blue Anodized Finish: Type II anodizing with blue dye provides corrosion resistance, surface hardness, and a distinctive cosmetic finish for medical handheld devices — uniform color verified across both shells and production batches.

Quality Verification

CMM inspection verified dimensional accuracy and mating surface alignment between half-shells. Visual inspection confirmed uniform bead-blasted texture and consistent blue anodized color across both shells. Assembly test verified flush mating with no gaps.

Industry Applications

Ideal for handheld medical instruments, portable diagnostic devices, patient monitoring units, and therapeutic equipment housings requiring split-body enclosures.

Why Partner With Us?

• Proven expertise in split-shell enclosure machining with tight mating fit control
• In-house bead-blasting and blue anodizing with MIL-spec compliance
• Turn-mill capabilities for complex half-shell geometries
• 12+ years of precision manufacturing experience across medical device sectors
