High-Precision 5-Axis Machined 316L Stainless Steel Robotic Joint with Anodizing | ISO2768-F Standard

Project Overview

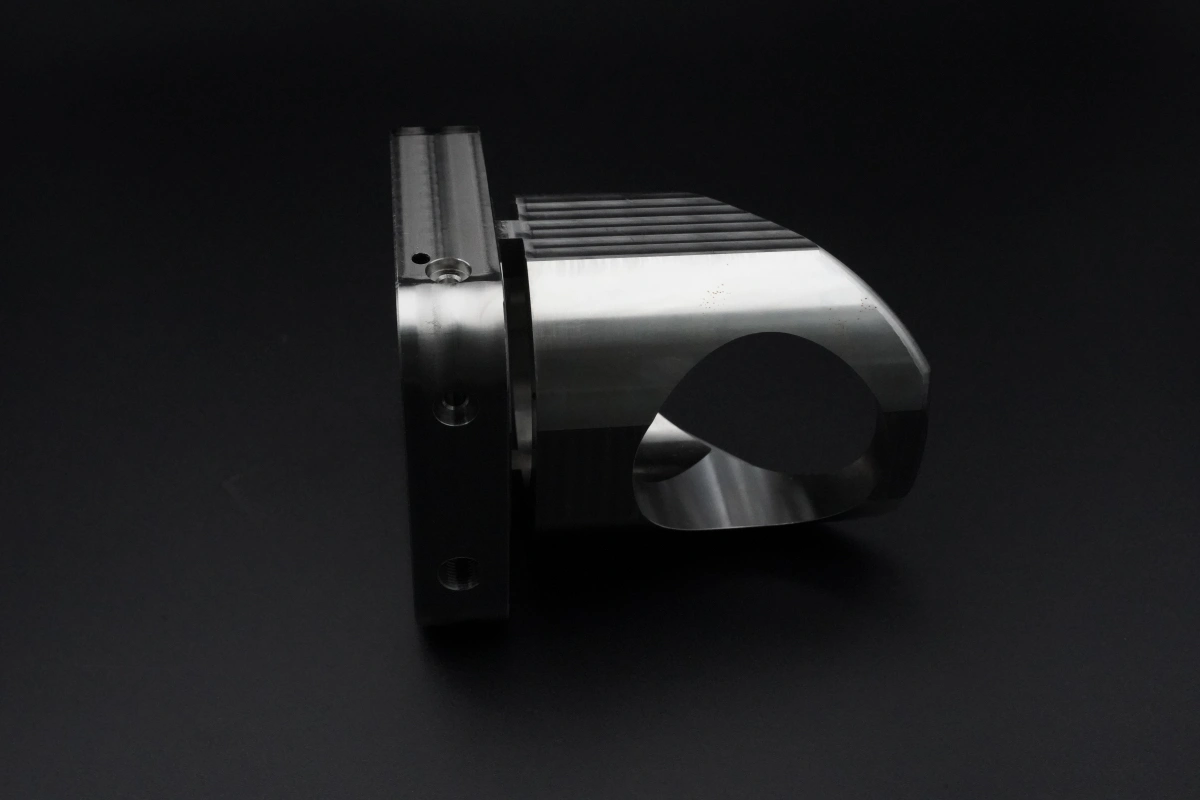

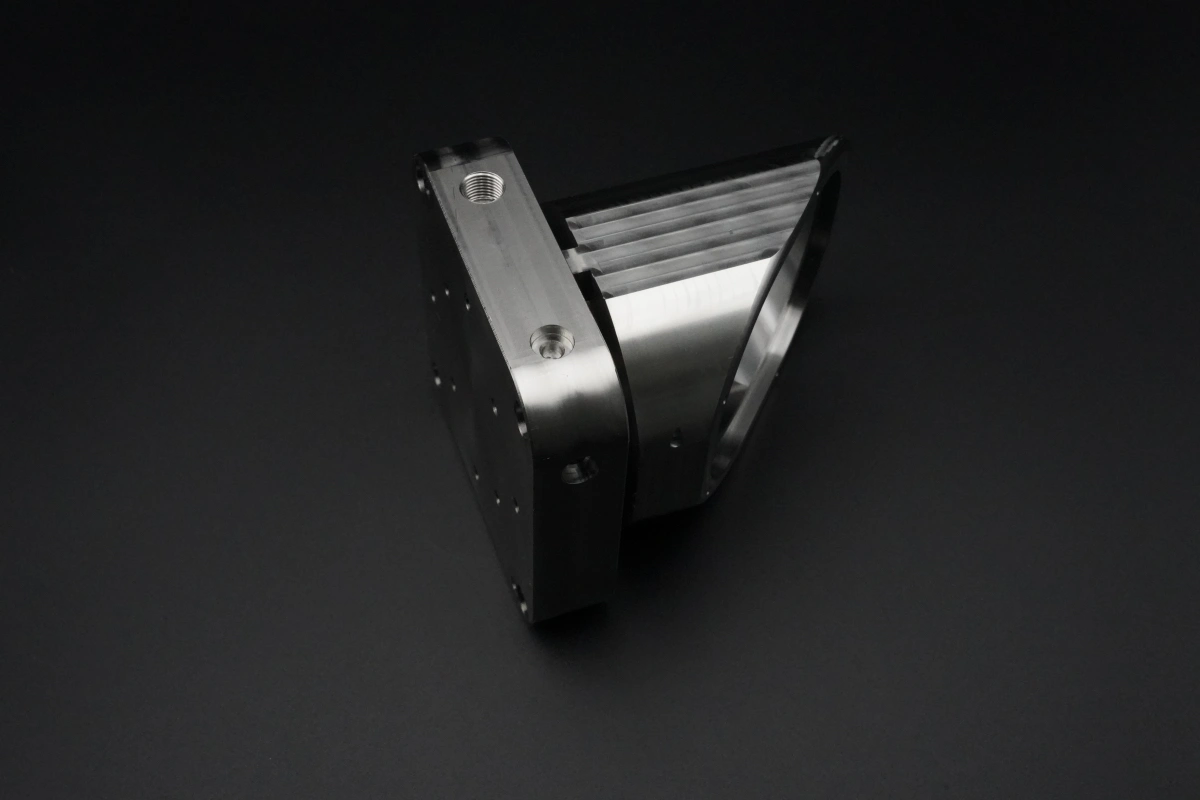

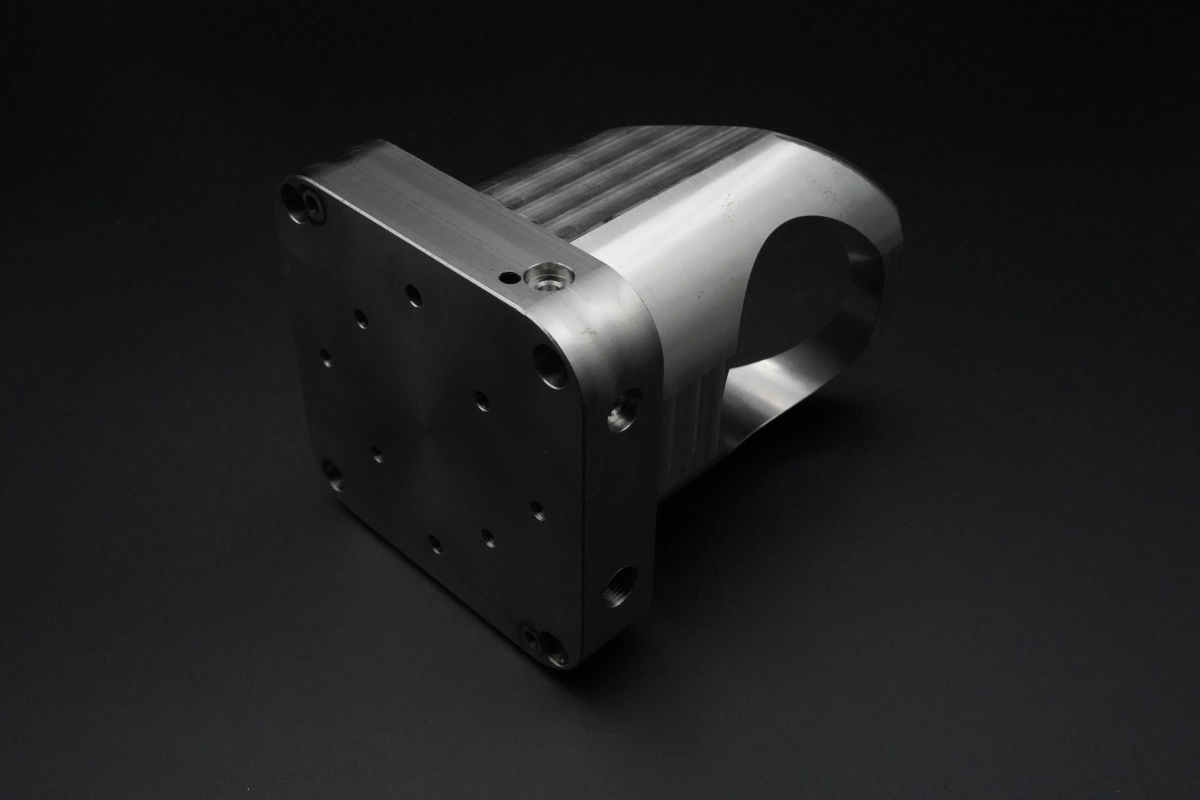

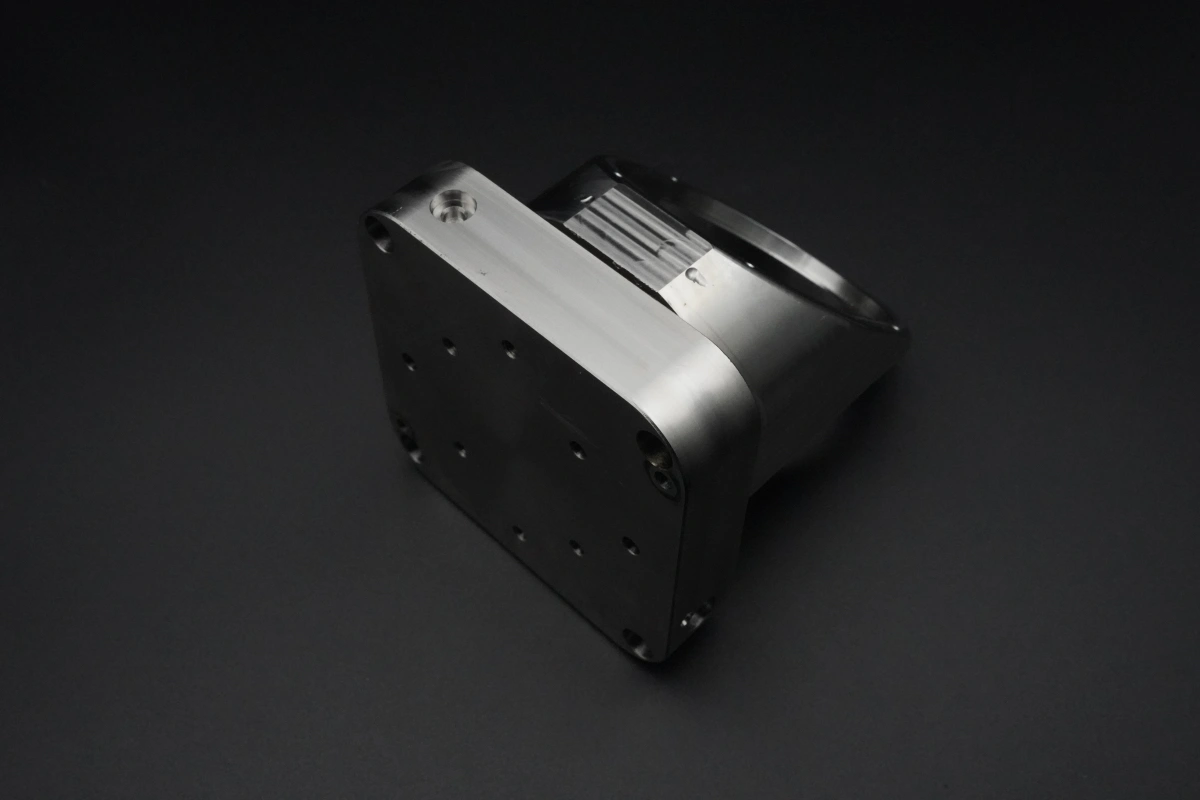

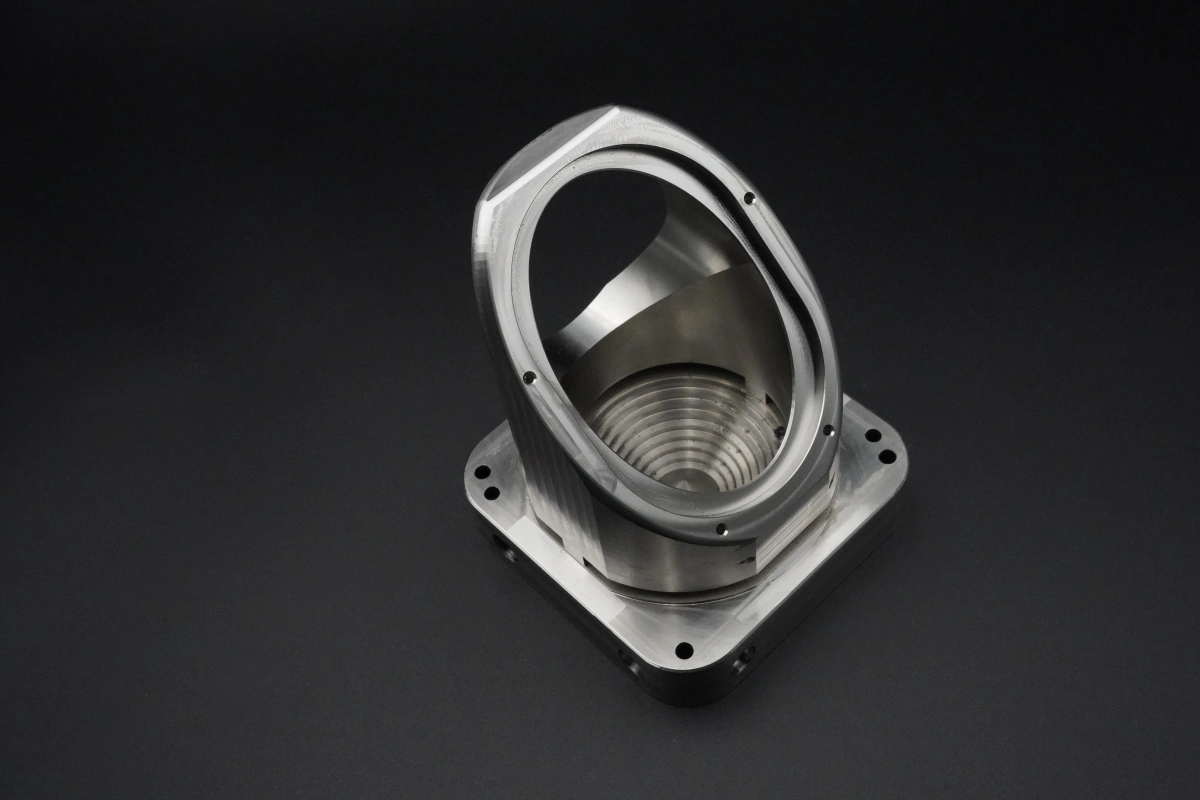

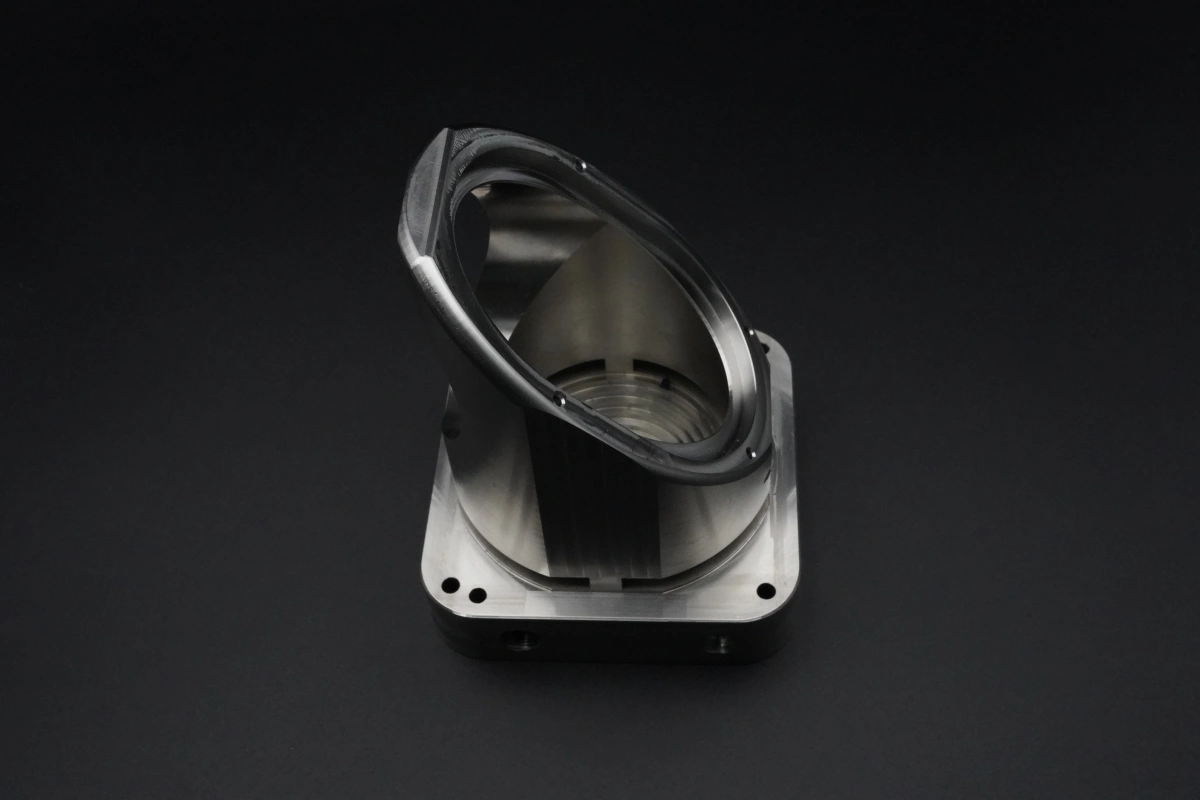

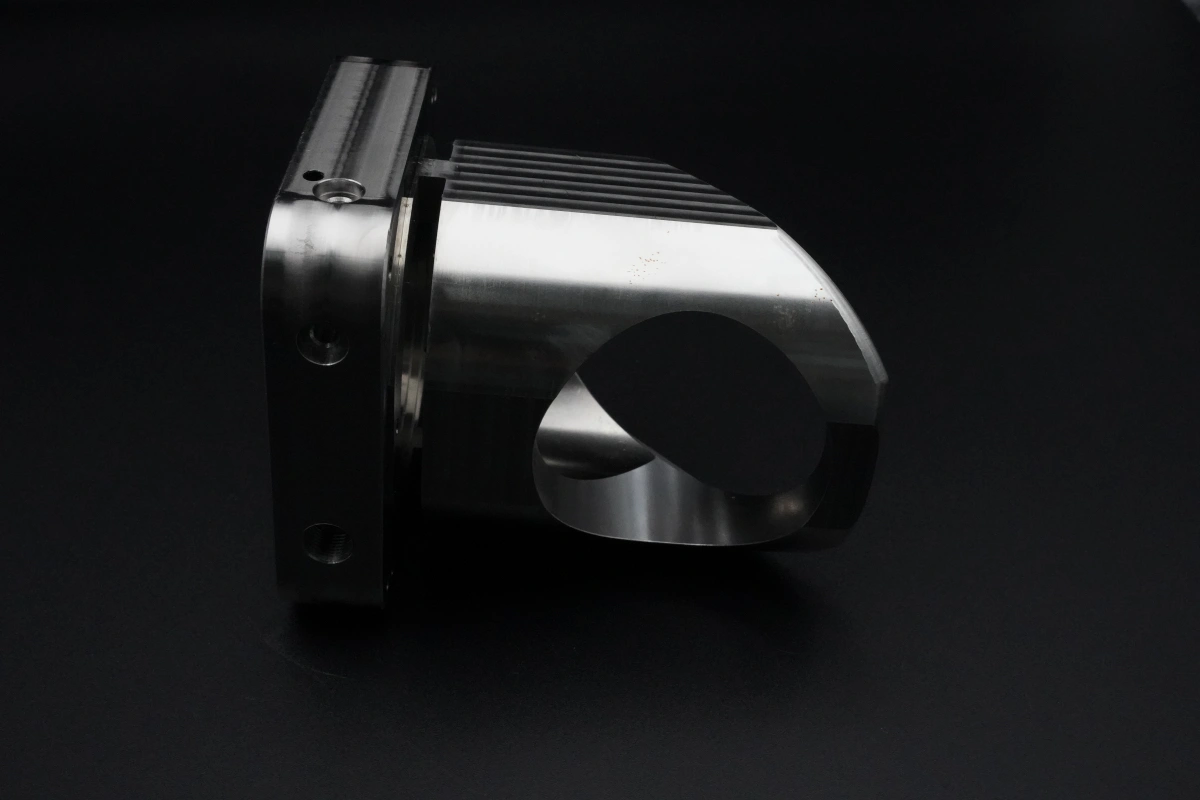

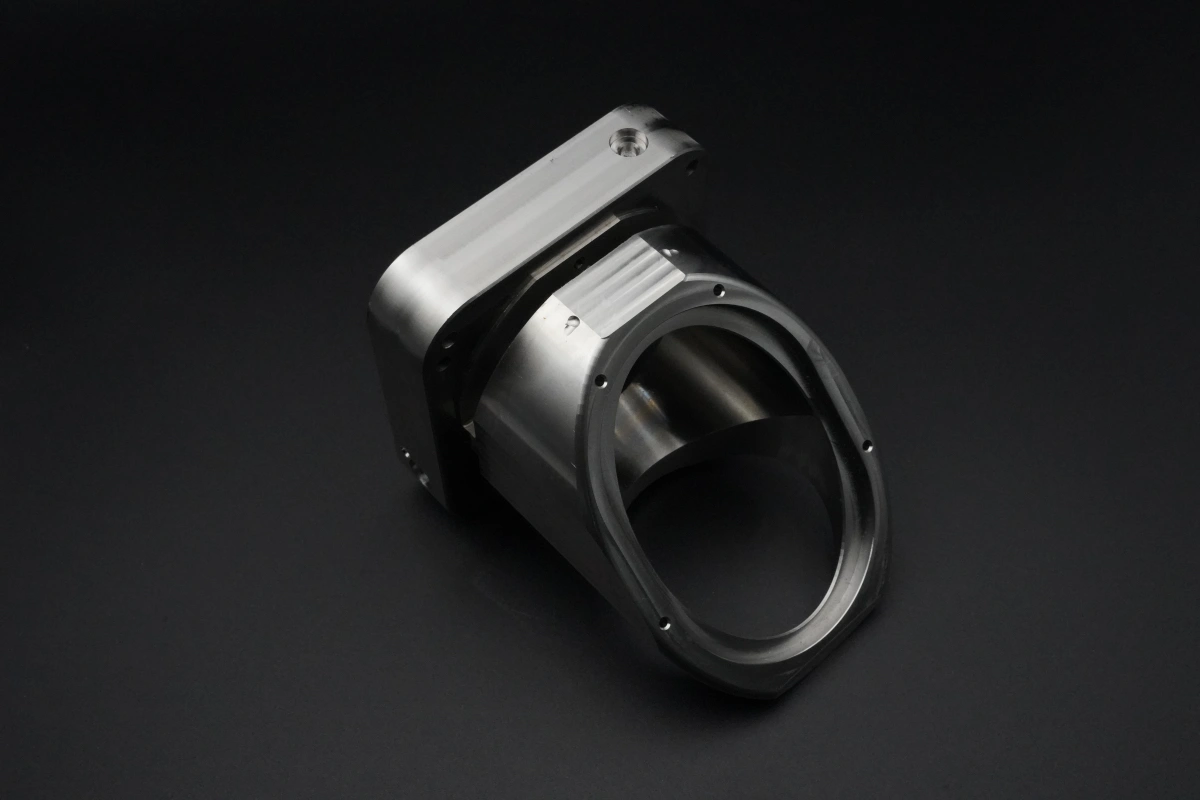

This project involved the high-precision 5-Axis Machining of a robotic joint component made from 316L Stainless Steel, designed specifically for the robotics industry. The part required natural anodizing Surface Treatment and strict adherence to the ISO2768-F tolerance standard to ensure exceptional performance and durability in dynamic robotic applications.

Core Parameters

Design Advantages

• Superior Precision: 5-axis machining enables complex geometries and tight tolerances.
• Enhanced Corrosion Resistance: 316L Stainless Steel offers excellent resistance to harsh environments.
• Improved Surface Hardness: Anodizing increases wear resistance and surface durability.
• High Load Capacity: Designed to withstand repetitive motion and high stress in robotic systems.

Process Control

Rigorous quality control was maintained throughout the 5-axis machining process, including in-process inspections and CMM verification. Each robotic joint was tested for dimensional accuracy, surface integrity, and compliance with ISO2768-F standards.

Quality Reports

Comprehensive documentation is provided, including material certifications, mechanical test reports, and full traceability. All parts are manufactured in compliance with international quality standards for robotics applications.
