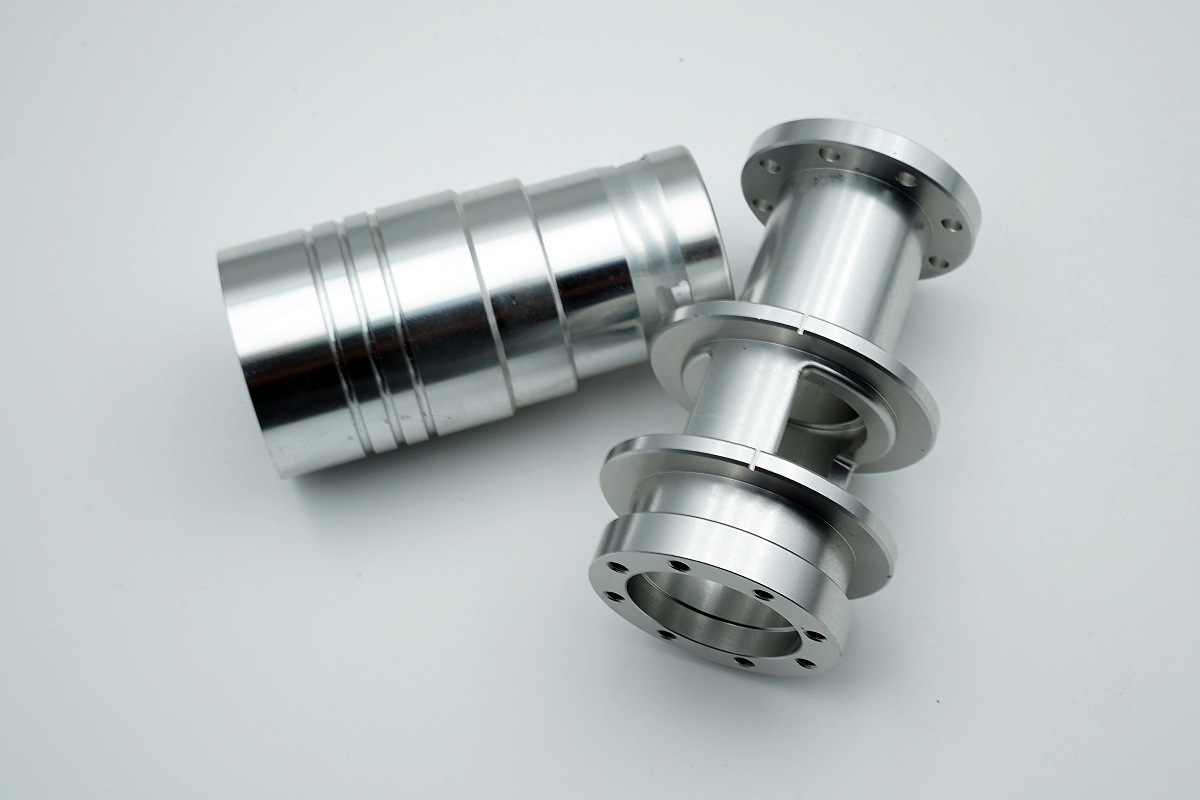

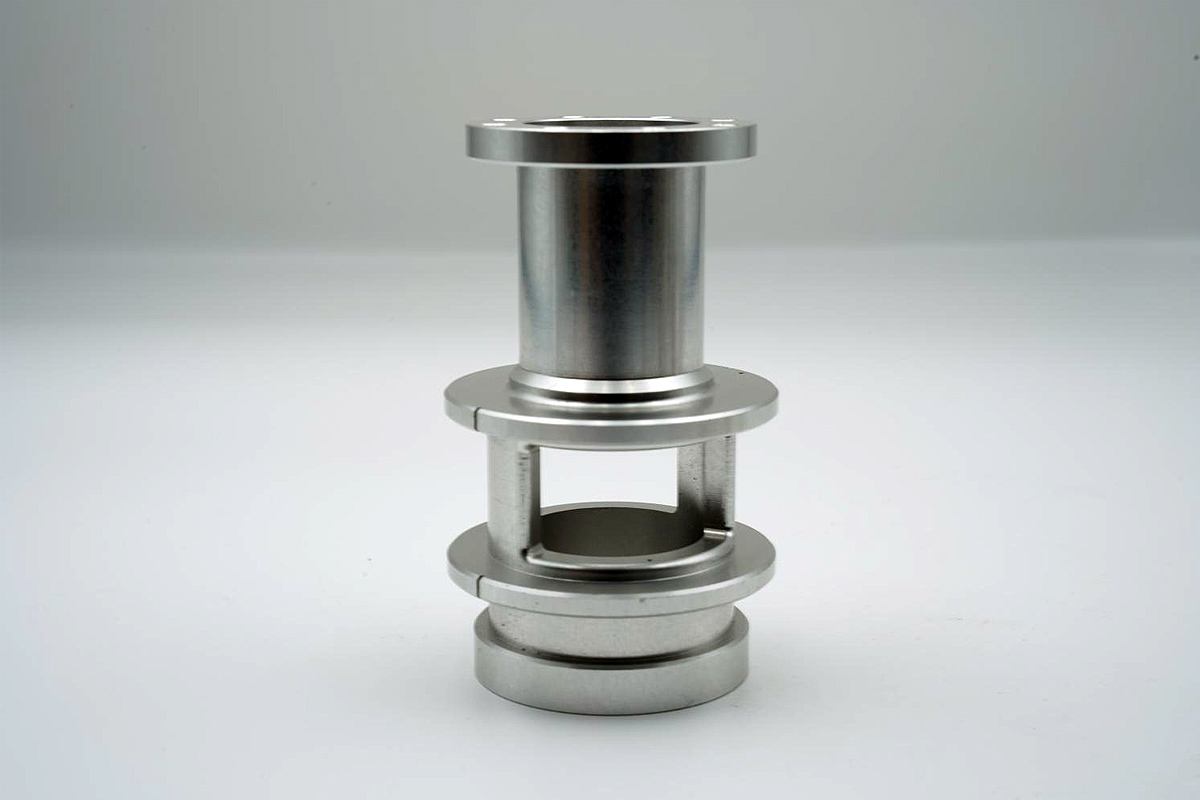

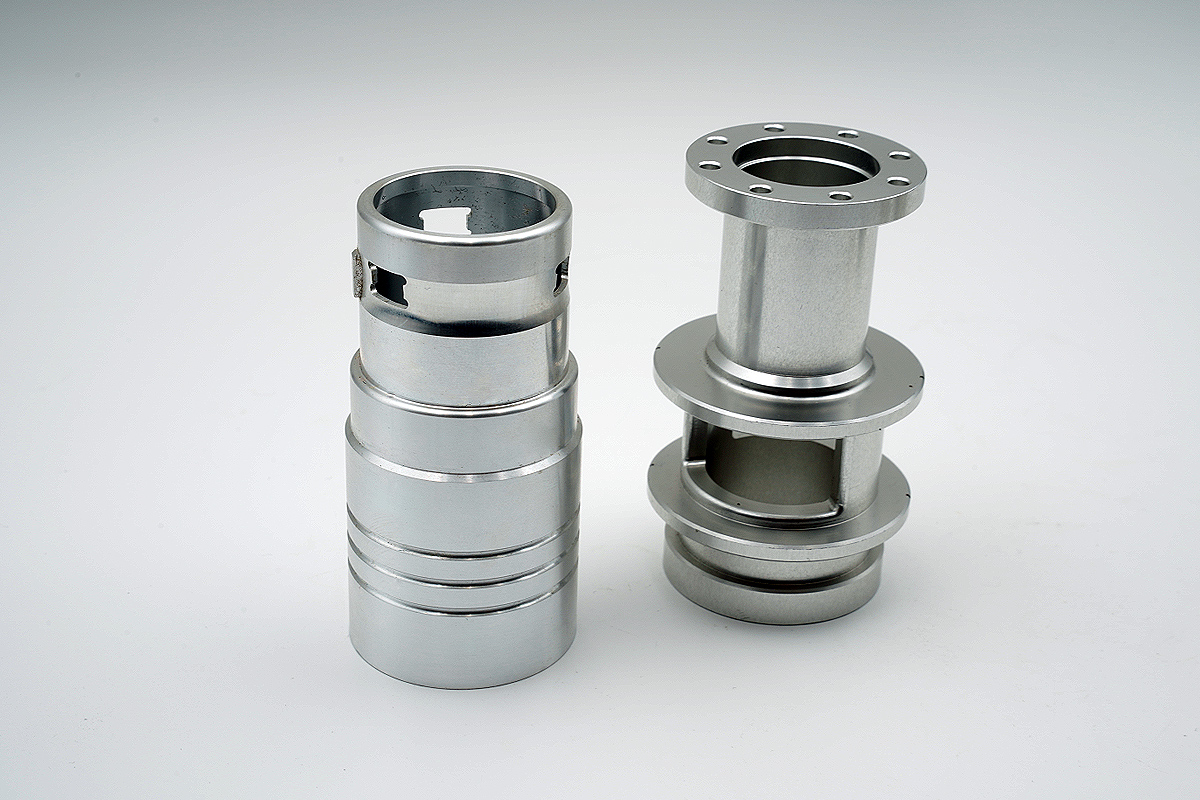

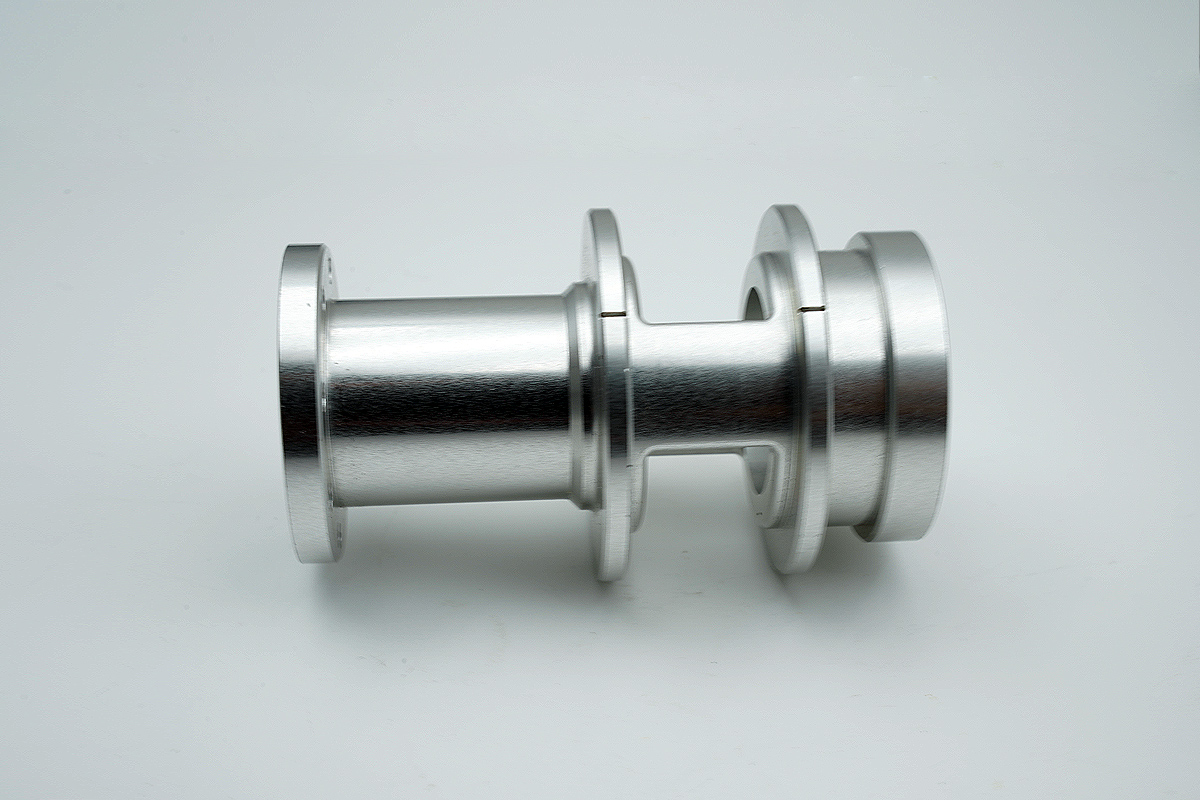

CNC turned 6061-T6 Aluminum connectors for IV and fluid transfer systems. Lightweight and reliable.
| Project Name | Medical stainless steel parts |
| Material | Aluminum 6061-T6 |
| Processing Equipment | Turning compound |
| Technology | CNC turning |
| Testing Instruments | CMM |
| Surface Treatment | As Machined |
| Post-surface Inspection Equipment | CMM |
| Application Areas | Medical |
| Characteristic | Specification | Standard |
|---|---|---|
| Material | ASTM B221 6061-T6 | ISO 6362-2 |
| Dimensional Tolerance | ±0.05mm | ISO 2768-mK |
| Pressure Rating | 0.3MPa working pressure | ISO 594-2 |
| Surface Finish | Ra 0.8μm (as-machined) | ASME B46.1 |
Luer lock compatible (ISO 80369)
Color-coded identification bands
Single-piece construction
Swiss-type CNC turning
Deburring via cryogenic tumbling
Anodizing options available
Material certificates
Dimensional inspection reports
Leak test certification
|
Name |
Applicable Materials |
Colors |
Can be applied to |
|
|---|---|---|---|---|
|
|
Aluminum, Steel, Stainless Steel |
Ra 0.8μm - Ra 3.2μm |
All post processes |
